Foundations for statistical inference

Applied Statistics for Life Sciences

Study design and data semantics

What is a study?

A study is an effort to collect data in order to answer one or more research questions.

studies must be well-matched to research questions to provide good answers
how data are obtained is just as important as how the resulting data are analyzed
no analysis, no matter how sophisticated will rescue a poorly conceived study

A study unit is the smallest object or entity that is measured in a study; also called experimental unit or observational unit.

Sampling

Study units should be chosen so as to represent a larger collection or “population”.

A study population is a collection of all study units of interest.

A sample is a subcollection:

probability sample: all study units have some known “inclusion probability” or chance of being selected
nonrandom/convenience sample: inclusion probabilities are not known

The gold standard is the simple random sample: all inclusion probabilities are equal.

ensures samples of a fixed size from the population are exchangeable and thus “representative”
justifies inferences about the population based on the sample

Two types of studies

Observational studies collect data from an existing situation without intervention.

Aim is to detect associations and patterns
Can’t be used to infer causal relationships owing to possible unmeasured confounding

Experiments collect data from a situation in which one or more interventions have been introduced by the investigator.

Interventions are (supposed to be) randomized among study units
Aim is to draw conclusions about the causal effect of interventions
Stronger form of scientific evidence than an observational study

LEAP Study

Learning early about peanut allergy (LEAP) study:

640 infants in UK with eczema or egg allergy but no peanut allergy enrolled
each infant randomly assigned to peanut consumption and peanut avoidance groups
- peanut consumption: fed 6g peanut protein daily until 5 years old
- peanut avoidance: no peanut consumption until 5 years old
at 5 years old, oral food challenge (OFC) allergy test administered
13.3% of the avoidance group developed allergies, compared with 1.9% of the consumption group

Study characteristics

Study type: experiment

Study population: UK infants with eczema or egg allergy but no peanut allergy

Sample: 640 infants from population

Treatments: peanut consumption; peanut avoidance

Treatment allocation: completely randomized

Study outcome: development of peanut allergy by 5 years of age

Study results

Moderated peanut consumption causes a reduction in the likelihood of developing an allergy among infants with prior risk (eczema or egg allergies).

Why randomize?

Randomization eliminates confounding by ensuring that study interventions are independent of all extraneous conditions.

no association is possible between study intervention and unobserved variables
if outcomes differ systematically according to the intervention, you can be certain that the intervention is responsible

For example, imagine an observational version of the LEAP study in which allergy rates are compared between children who consumed peanuts as infants and those who didn’t.

those with reactions are more likely to become avoiders
could inflate the observed difference relative to the true effect

Randomizing consumption regimens eliminates this possibility.

LEAP example

A table showing the observations and variables for the LEAP study would look like this:

participant.ID	treatment.group	ofc.test.result
LEAP_100522	Peanut Consumption	PASS OFC
LEAP_103358	Peanut Consumption	PASS OFC
LEAP_105069	Peanut Avoidance	PASS OFC
LEAP_105328	Peanut Consumption	PASS OFC

The table you saw in the reading was a summary of the data (not the data itself):

	FAIL OFC	PASS OFC
Peanut Avoidance	36	227
Peanut Consumption	5	262

Numeric and categorical variables

Variables are classified according to their values. Values can be one of two different types:

A variable is numeric if its value is a number
A variable is categorical if its value is a category, usually recorded as a name or label

For example:

the value of sex can be male or female, so it is categorical
whereas age (in years) can be any positive integer, so it is numeric

Variable subtypes

Further distinctions are made based on the type of number or type of category used to measure an attribute. Can you match the subtypes to the variables at right?

age	hispanic	grade	weight
15	not	10	78.02
18	hispanic	12	78.47
17	not	11	95.26
18	not	12	95.26

a numerical variable is discrete if there are ‘gaps’ between its possible values
a numerical variable is continuous if there are no such gaps
a categorical variable is nominal if its levels are not ordered
a categorical variable is ordinal if its levels are ordered

Many ways to measure attributes

Variable type (or subtype) is not an inherent quality — attributes can often be measured in many different ways.

For instance, age might be measured as either a discrete, continuous, or ordinal variable, depending on the situation:

Age (years)	Age (minutes)	Age (brackets)
12	6307518.45	10-18
8	4209187.18	5-10
21	11258103.08	18-30

Numeric variables can always be discretized into categorical variables.

Your turn

Classify each variable as nominal, ordinal, discrete, or continuous:

ndrm.ch	genotype	sex	age	race	bmi
33.3	CT	Female	19	Caucasian	21.01
71.4	CT	Female	18	Other	23.18
37.5	CC	Female	21	Caucasian	28.92
50	CC	Female	28	Asian	21.16

Data are from an observational study investigating demographic, physiological, and genetic characteristics associated with muscle strength.

ndrm.ch is change in strength in nondominant arm after resistance training
genotype indicates genotype at a particular location within the ACTN3 gene

Recap

Data semantics

Data are a collection of measurements taken on a sample of study units:

measured attributes are called variables
per-unit measurements are called observations

Variables are classified by their values:

categorical data: ordinal (ordered) or nominal (unordered) categories
numeric data: continuous (no ‘gaps’) or discrete (‘gaps’) numbers

Data structures

Observations of many variables are stored as data frames:

# 3 observations of age and sex
head(subjects, 3)

  subject.id age sex
1         11  24   m
2          2  31   m
3         31  17   f

Observations of a single variable are stored as vectors:

# extract age variable
ages <- subjects$age
ages

[1] 24 31 17

Descriptive statistics

Dataset: FAMuSS study

Observational study of 595 individuals comparing change in arm strength before and after resistance training between genotypes for a region of interest on the ACTN3 gene.

Pescatello, L. S., et al. (2013). Highlights from the functional single nucleotide polymorphisms associated with human muscle size and strength or FAMuSS study. BioMed research international.

Example data rows
ndrm.ch	drm.ch	sex	age	race	height	weight	genotype	bmi
40	40	Female	27	Caucasian	65	199	CC	33.11
25	0	Male	36	Caucasian	71.7	189	CT	25.84
40	0	Female	24	Caucasian	65	134	CT	22.3
125	0	Female	40	Caucasian	68	171	CT	26

Summary statistics

A statistic is, mathematically, a function of the values of two or more observations

For numeric variables, the most common summary statistic is the average value:

For example, the average percent change in nondominant arm strength was 53.291%.

For categorical variables, the most common summary statistic is a proportion:

For example:

Genotype proportions
CC	CT	TT
0.2908	0.4387	0.2706

Mathematical notation

Typically, a set of observations is written as:

represents the variable (e.g., genotype, age, percent change, etc.)
(subscript) Indexes observations: is the th observation
is the total Number of observations

The sum of the observations is written , where the symbol stands for ‘summation’. This is useful for writing the formula for computing an average:

Descriptive statistics

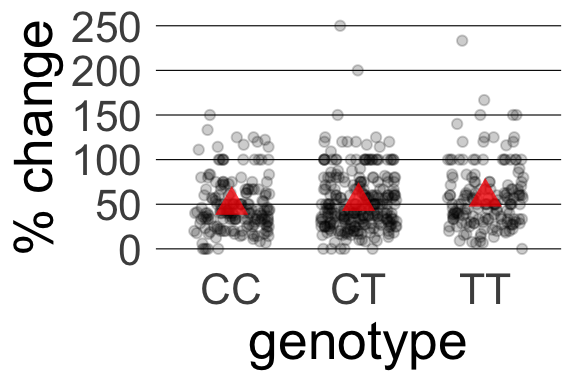

Descriptive statistics refers to analysis of sample characteristics using summary statistics (functions of data) and/or graphics.

For example:

genotype	avg.change.strength	n.obs
TT	58.08	161
CT	53.25	261
CC	48.89	173

We call these descriptions and not inferences because they describe the sample:

Among study participants, those with genotype TT (n = 161) had the greatest average change in nondominant arm strength (58.08%).

The appropriate type of data summary depends on the variable type(s)

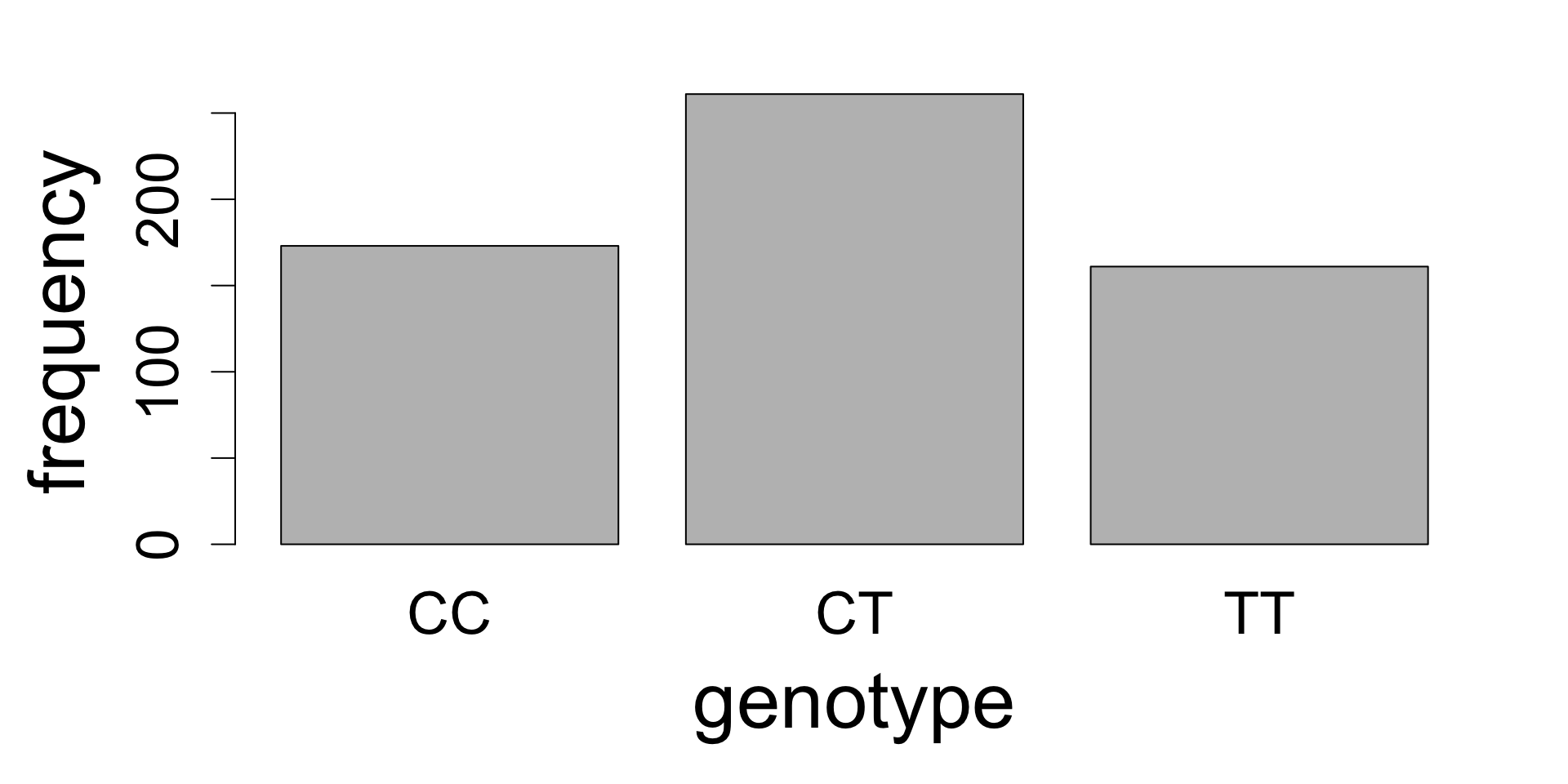

Categorical frequency distributions

For categorical variables, the frequency distribution is simply an observation count by category. For example:

Raw data
participant.id	genotype
494	TT
510	TT
216	CT
19	TT
278	CT
86	TT

Frequency distribution
CC	CT	TT
173	261	161

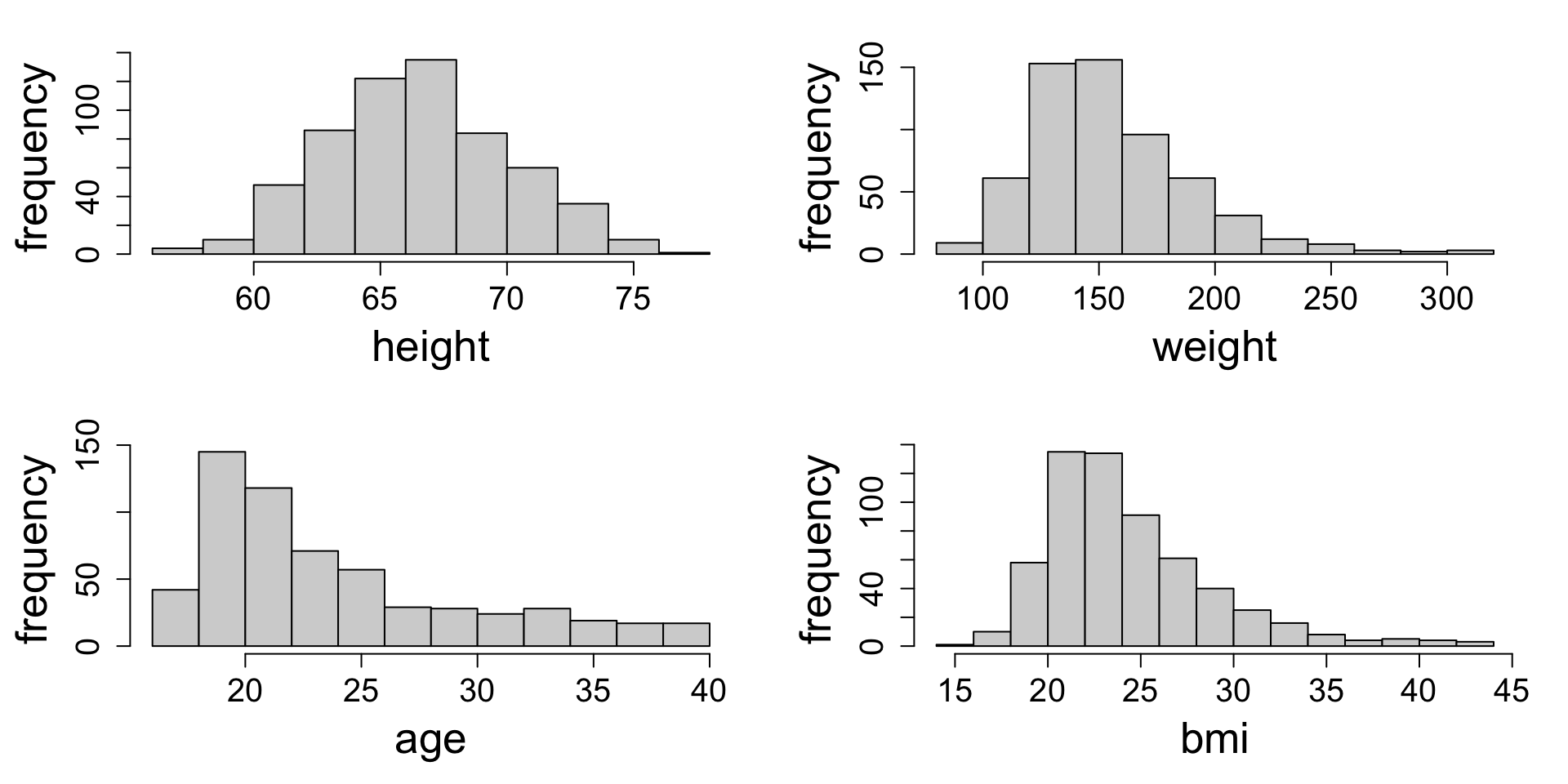

Numeric frequency distributions

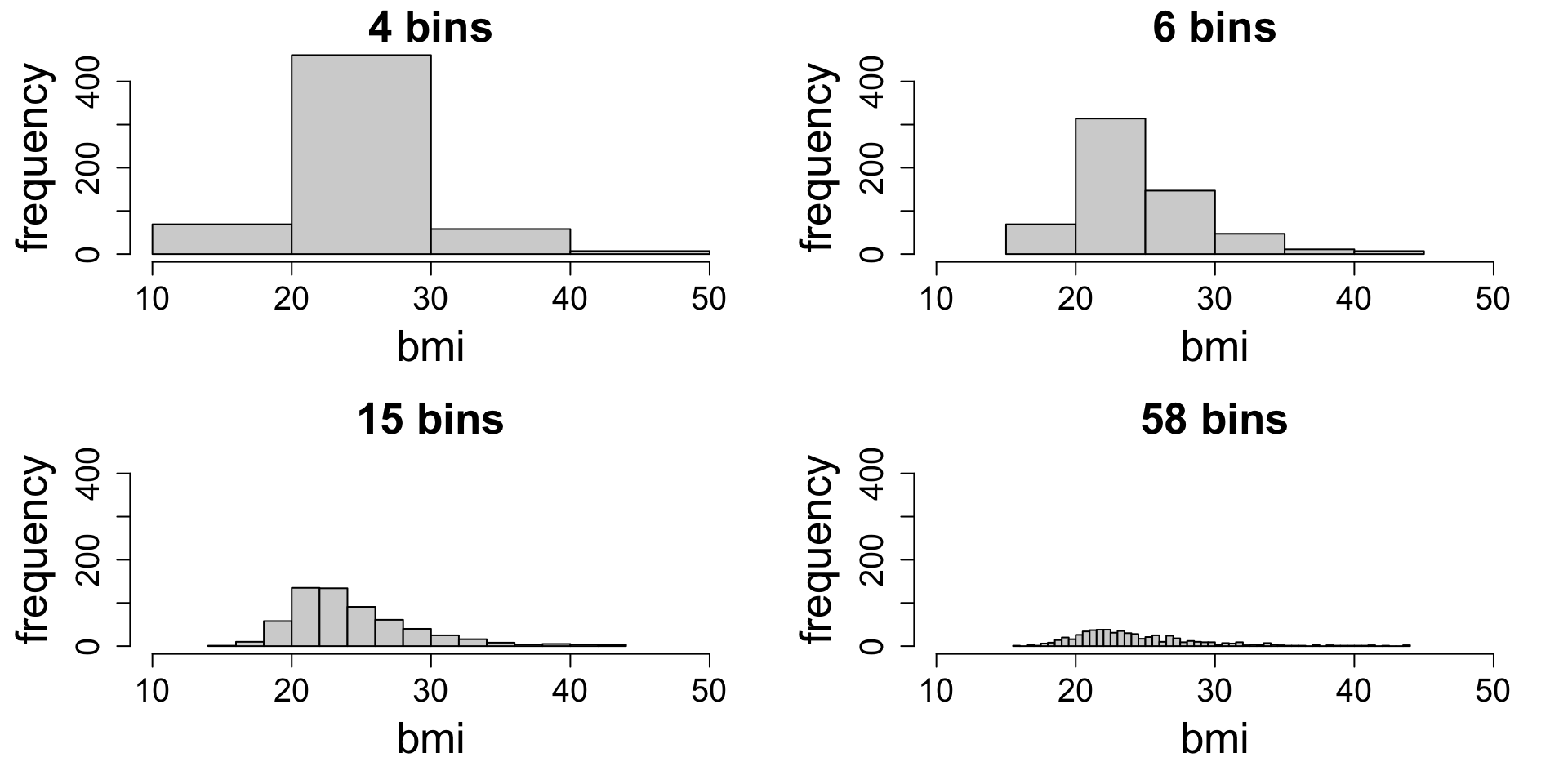

Frequency distributions of numeric variables are observation counts by “bins”: small intervals of a fixed width.

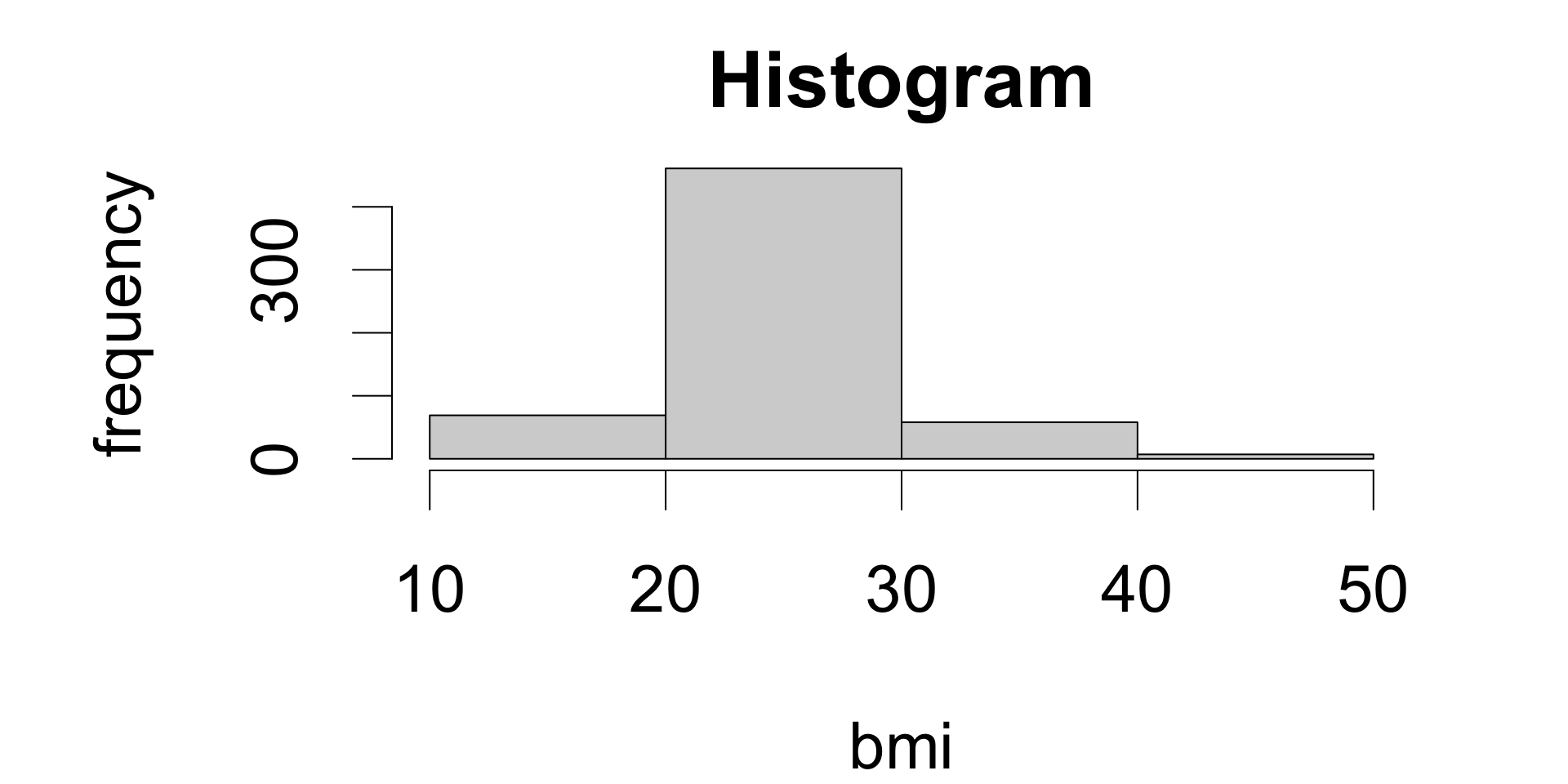

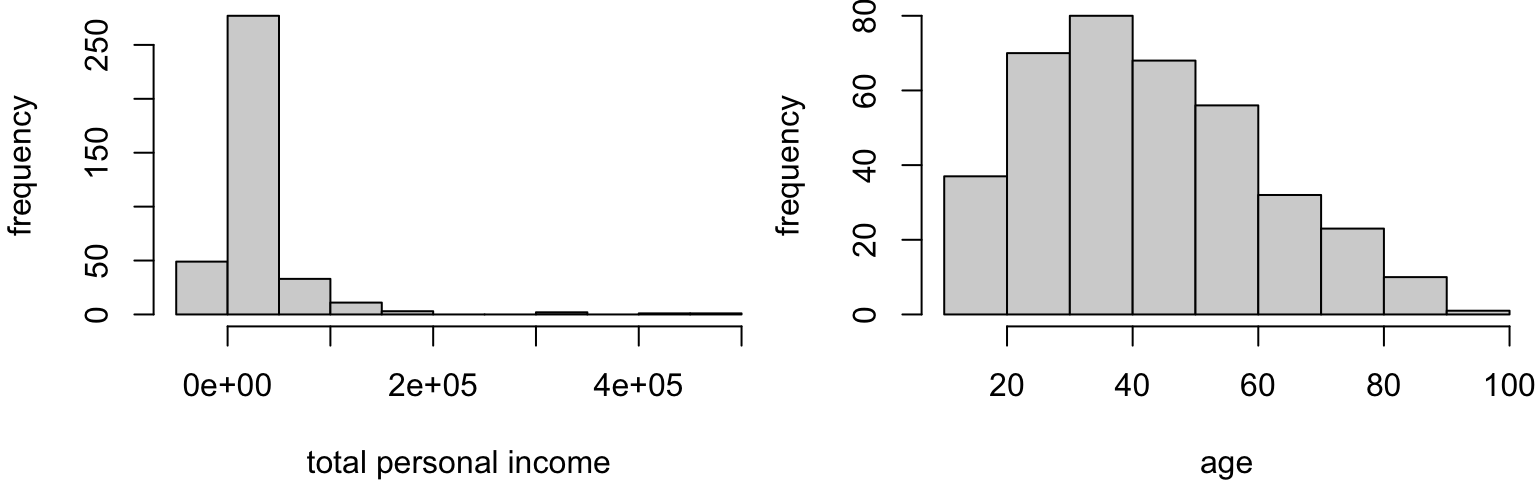

A plot of a numeric frequency distribution is called a histogram.

Data table
participant.id	bmi
194	22.3
141	20.76
313	23.48
522	29.29
504	42.28
273	20.34

Frequency distribution
(10,20]	(20,30]	(30,40]	(40,50]
69	461	58	7

Common statistics as measures

Most common statistics measure a particular feature of the frequency distribution, typically either location/center or spread/variability.

Measures of center:

mean
median
mode

Measures of location:

percentiles/quantiles

Measures of spread:

range (min and max)
interquartile range
variance
standard deviation

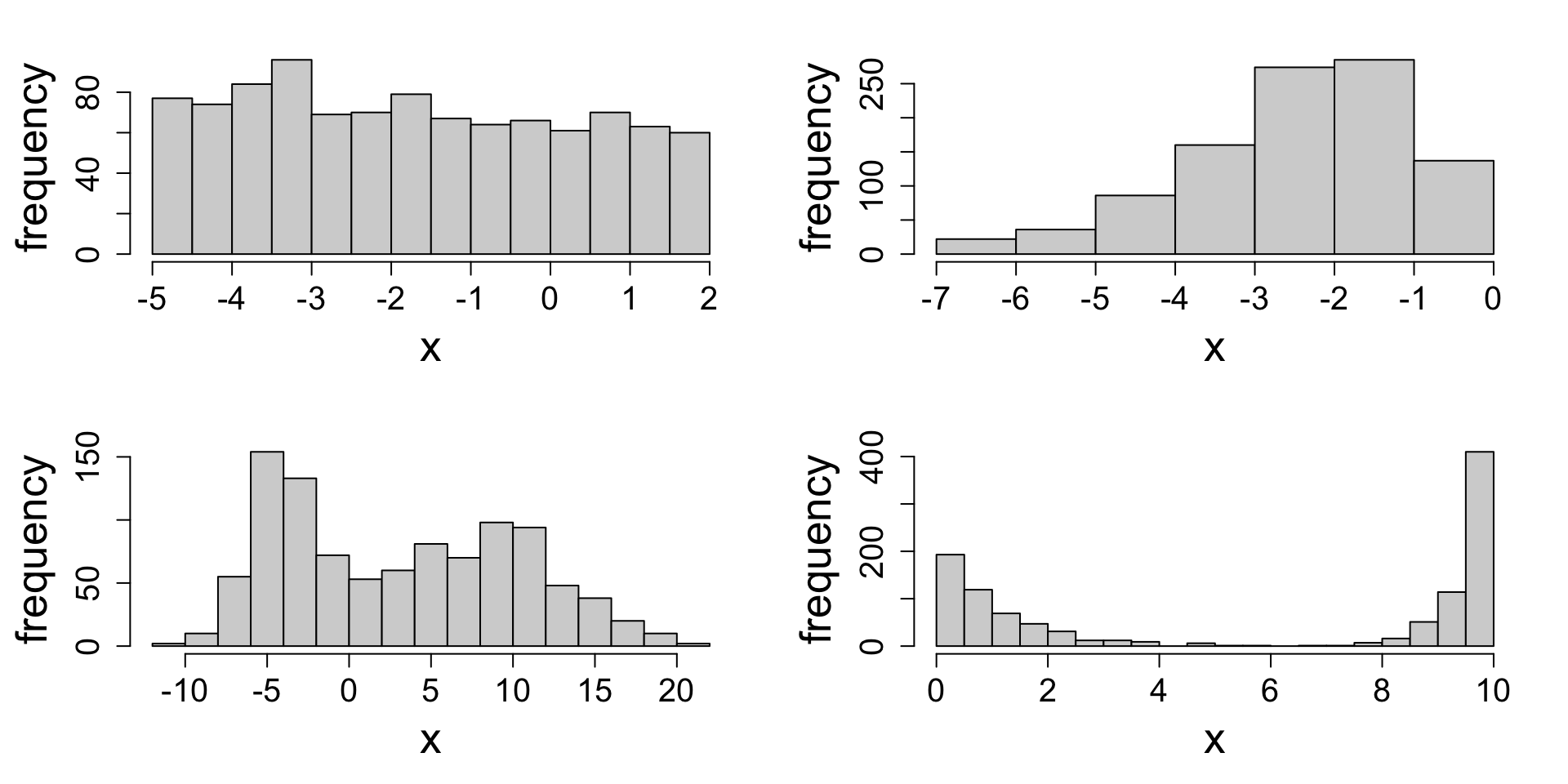

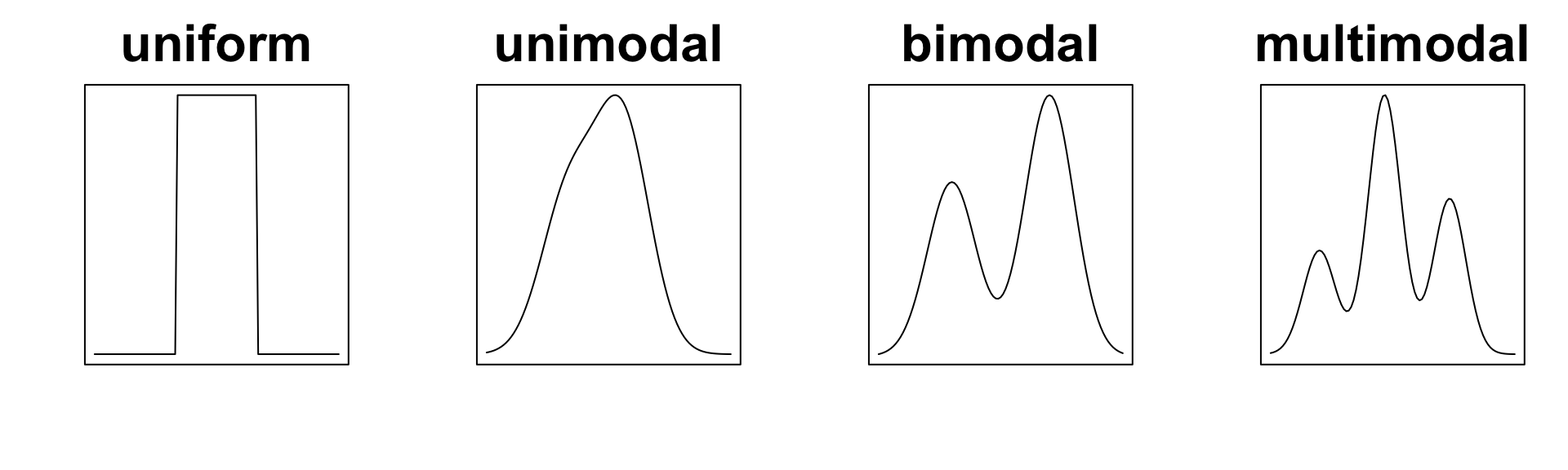

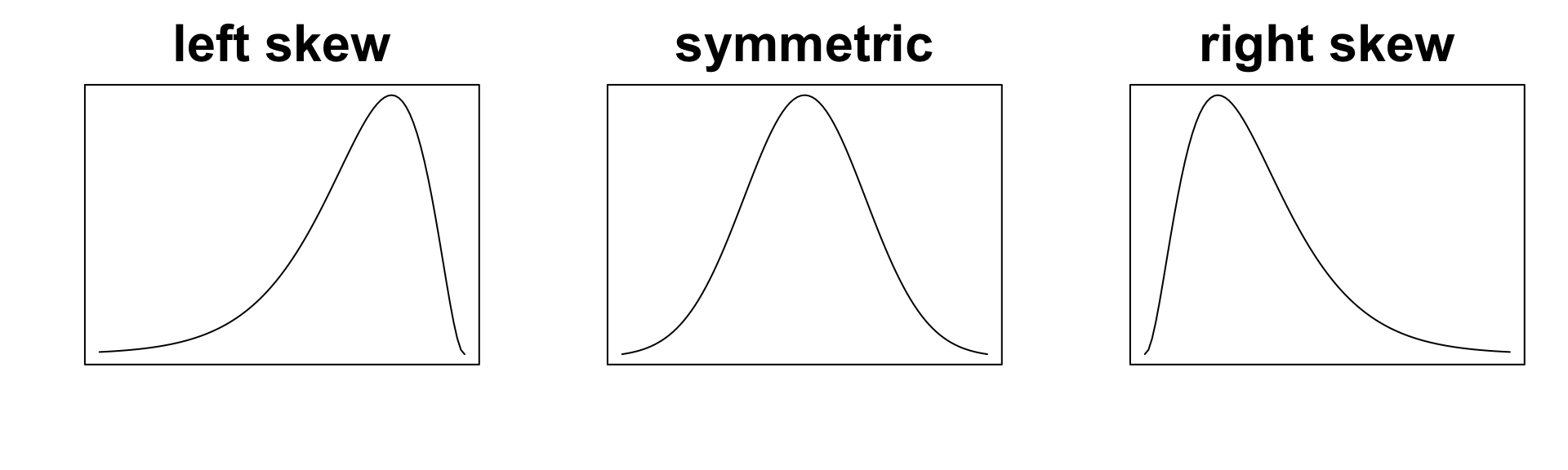

The most appropriate choice of statistic(s) depends on the shape of the frequency distribution.

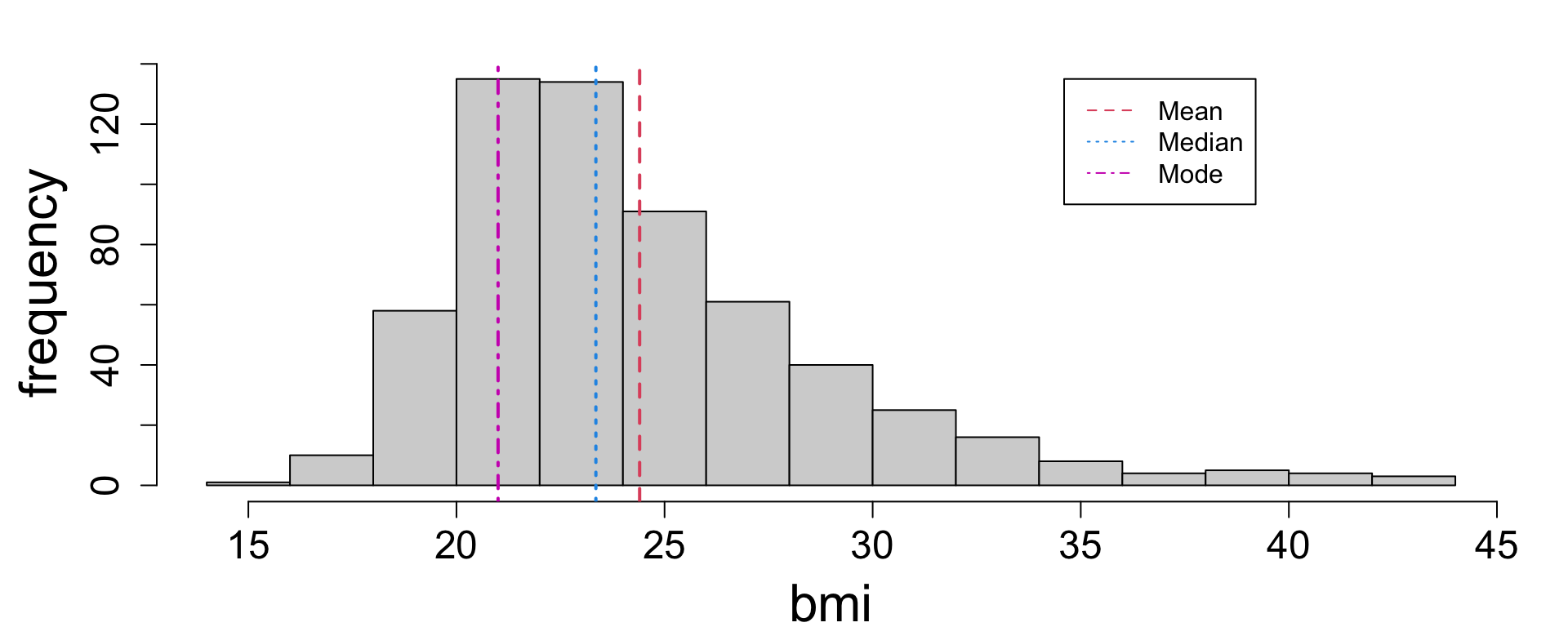

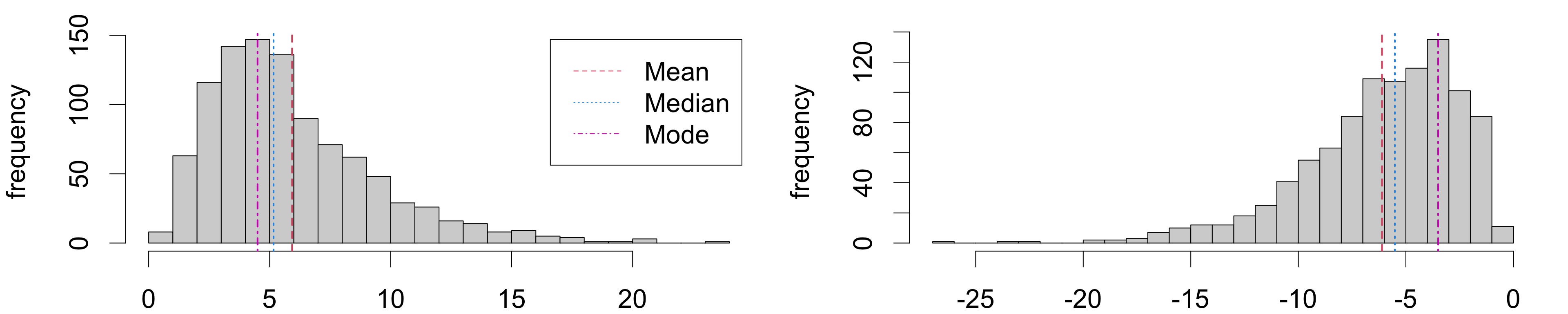

Measures of center

There are three common measures of center, each of which corresponds to a slightly different meaning of “typical”:

Measure	Definition
Mode	Most frequent value
Mean	Average value
Median	Middle value

Suppose your data consisted of the following observations of age in years:

19, 19, 21, 25 and 31

the mode or most frequent value is 19
the median or middle value is 21
the mean or average value is = 23

Percentiles

A percentile is a threshold value that divides the observations into specific percentages.

Percentiles are defined by the percentage of data below the threshold, for example:

20th percentile: value exceeding exactly 20% of observations
60th percentile: value exceeding exactly 60% of observations

Sample percentiles are not unique!

age	19	20	21	25	31
rank	1	2	3	4	5

Any number between 19 and 20 is a 20th percentile since it would satisfy:

20% below (19)
80% above (20, 21, 25, 31)

Usually, pick the midpoint: 19.5.

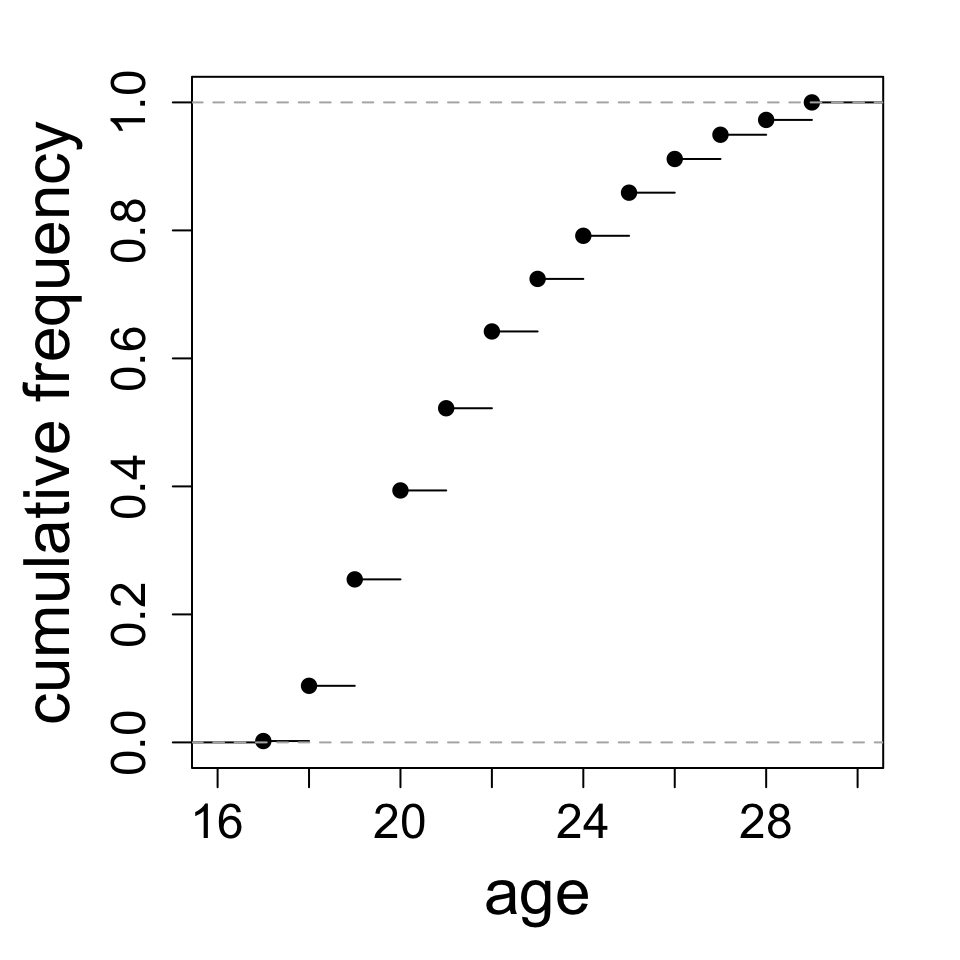

Cumulative frequency distribution

The cumulative frequency distribution is a data summary showing percentiles. Think of it as percentile (y) against value (x).

Interpretation of some specific values:

about 40% of the subjects are 20 or younger
about 80% of the subjects are 24 or younger

Your turn:

Roughly what percentage of subjects are 22 or younger?
About what age is the 10th percentile?

Common percentiles

The five-number summary is a collection of five percentiles that succinctly describe the frequency distribution:

Statistic name	Meaning
minimum	0th percentile
first quartile	25th percentile
median	50th percentile
third quartile	75th percentile
maximum	100th percentile

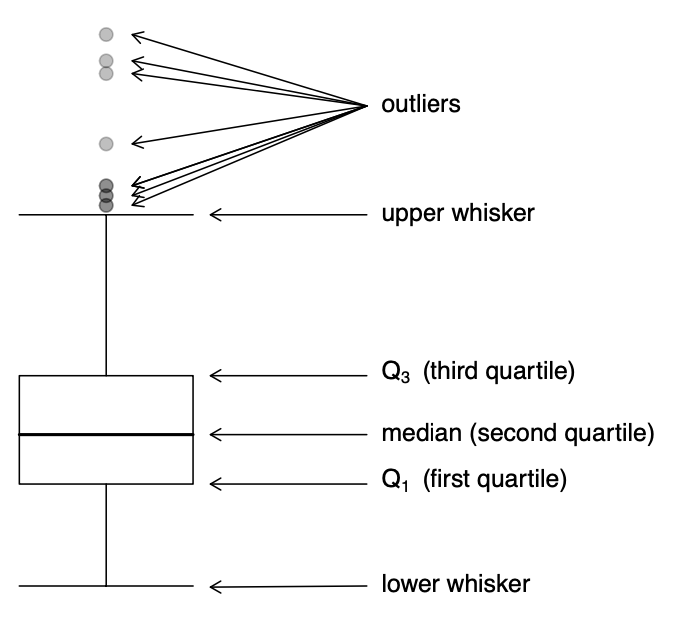

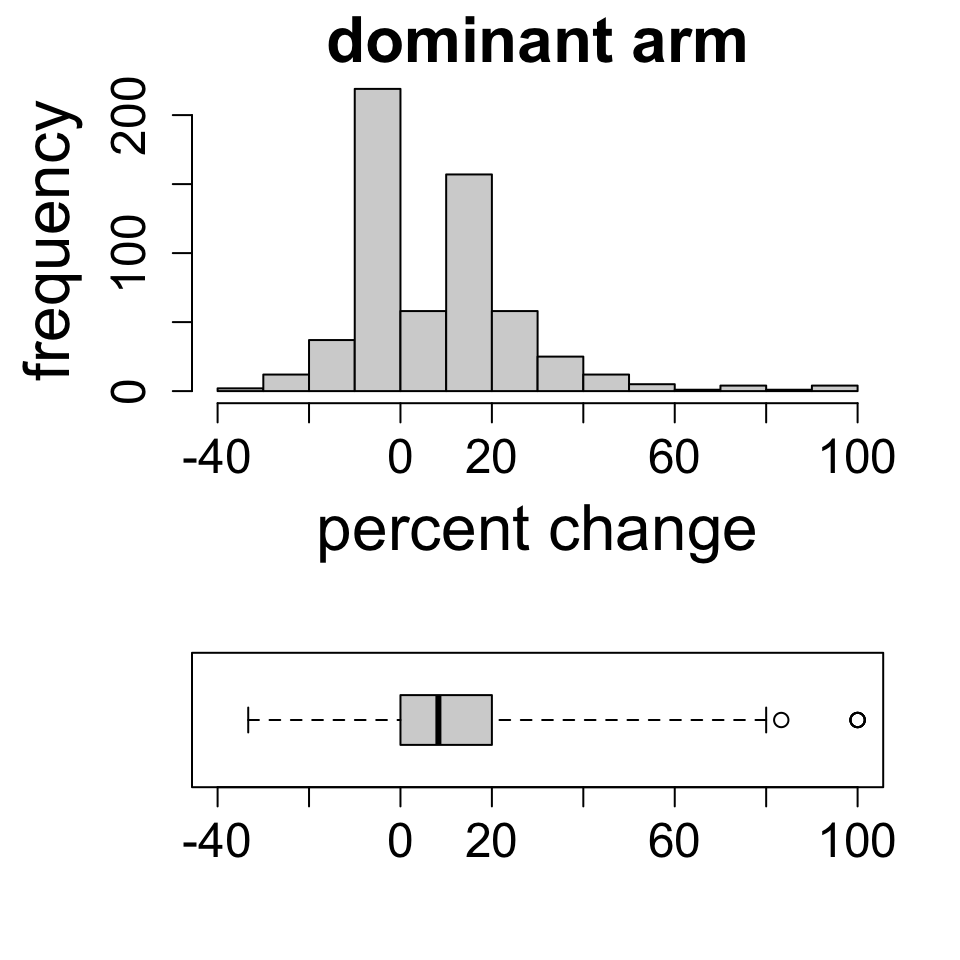

Boxplots provide a graphical display of the five-number summary.

Range-based measures of spread

A simple way to understand and measure spread is based on ranges. Consider more ages, sorted and ranked:

age	16	18	19	20	21	22	25	26	28	29	30	34
rank	1	2	3	4	5	6	7	8	9	10	11	12

The range is the minimum and maximum values:
The interquartile range (IQR) is the difference [75th percentile] - [25th percentile]

Deviation-based measures of spread

Another way is based on deviations from a central value. Continuing the example, the mean age is is 24. The deviations of each observation from the mean are:

age	16	18	19	20	21	22	25	26	28	29	30	34
deviation	-8	-6	-5	-4	-3	-2	1	2	4	5	6	10

The variance is the average squared deviation from the mean (but divided by one less than the sample size):

In mathematical notation:

Deviation-based measures of spread

Another way is based on deviations from a central value. Continuing the example, the mean age is is 24. The deviations of each observation from the mean are:

age	16	18	19	20	21	22	25	26	28	29	30	34
deviation	-8	-6	-5	-4	-3	-2	1	2	4	5	6	10

The standard deviation is the square root of the variance:

In mathematical notation:

Interpretations

Listed from largest to smallest, here are each of the measures of spread for the 12 ages:

min	max	iqr	variance	st.dev	avg.dev
16	34	8.5	30.55	5.527	4.667

The interpretations differ between these statistics:

[range] all of the participants are between 16 and 34 years old
[IQR] the middle 50% of participants are within 8.5 years of age of each other
[variance] participants’ ages vary by an average of 30.55 squared years
[standard deviation] participants’ ages vary by an average of 5.53 years

Robustness to outliers

Percentile-based measures of location and spread are less sensitive to outliers

Consider adding an observation of 94 to our 12 ages. (This is called an outlier.)

# append an outlier
ages_add <- c(ages, 94)

# IQR
c(original = IQR(ages), with.outlier = IQR(ages_add))

    original with.outlier
         8.5          9.0

# SD
c(original = sd(ages), with.outlier = sd(ages_add))

    original with.outlier
    5.526794    20.122701

The effect of this outlier on each statistic is:

IQR increases by 5.88%
SD increases by 264.09%

In the presence of outliers, IQR is a more robust measure of spread.

Inference foundations: point estimation and sampling variability

Foundations for inference

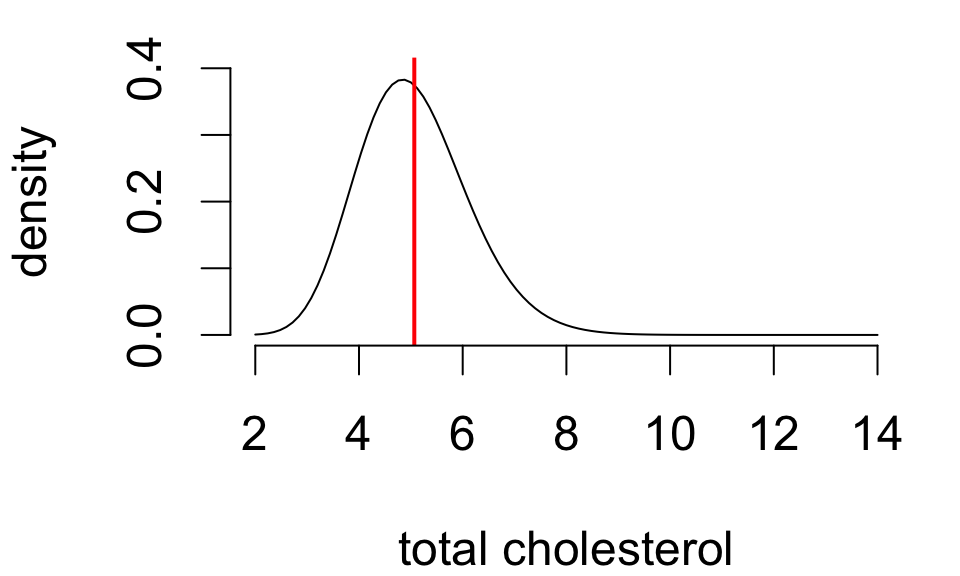

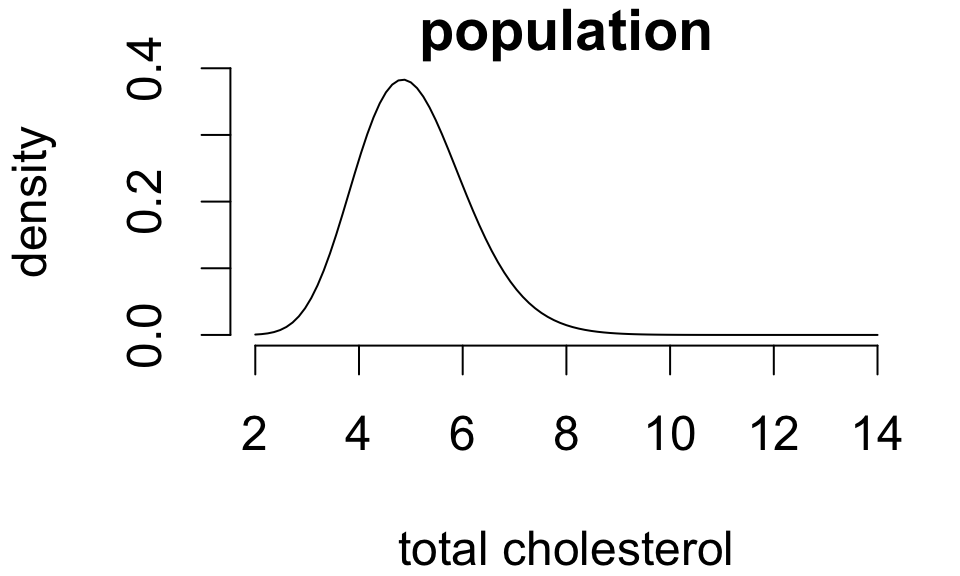

Population statistics are called parameters. These are fixed but unknown values.

Population mean	Population SD
5.067	1.126

Notation:

population mean
population standard deviation

Foundations for inference

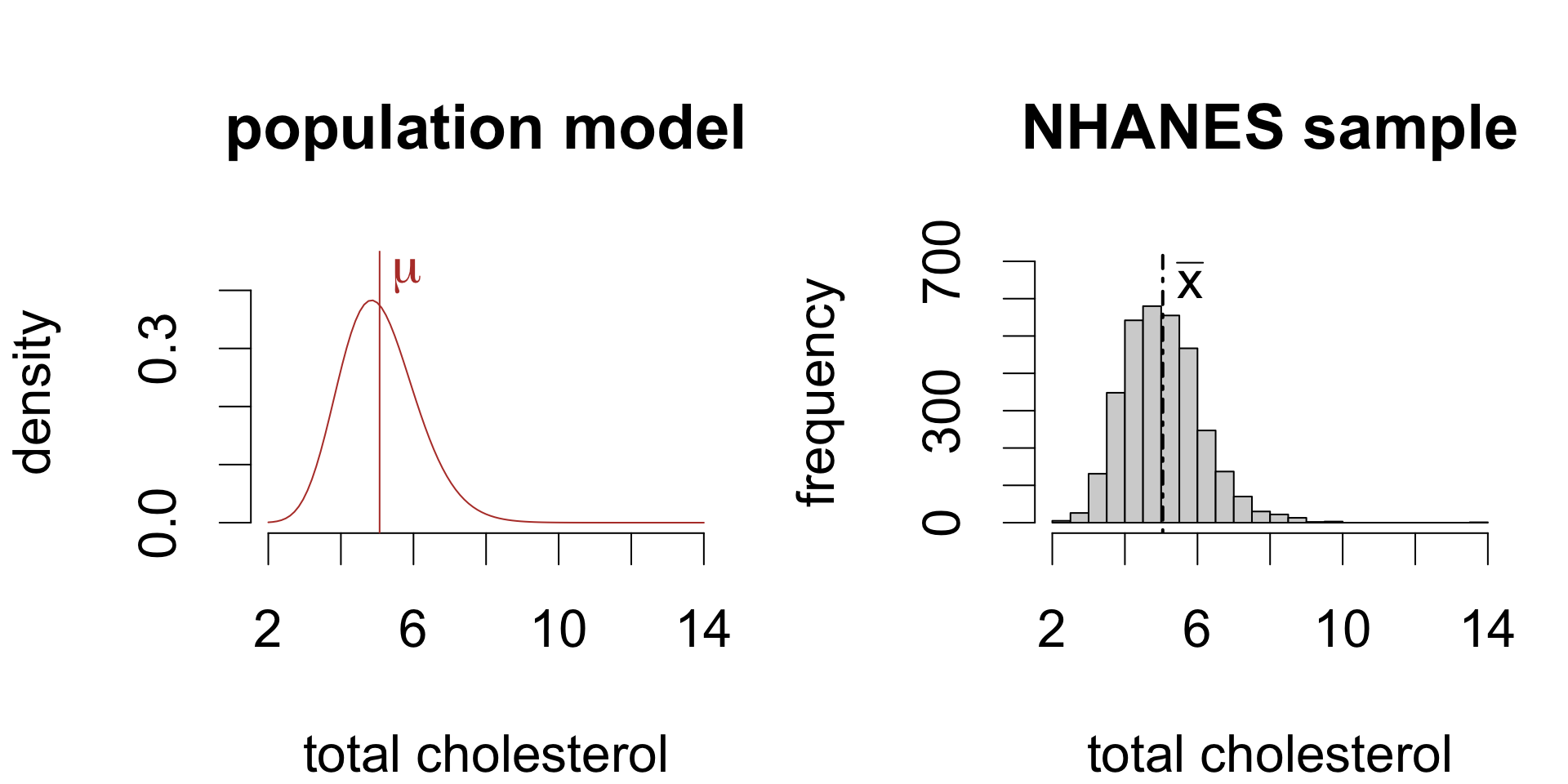

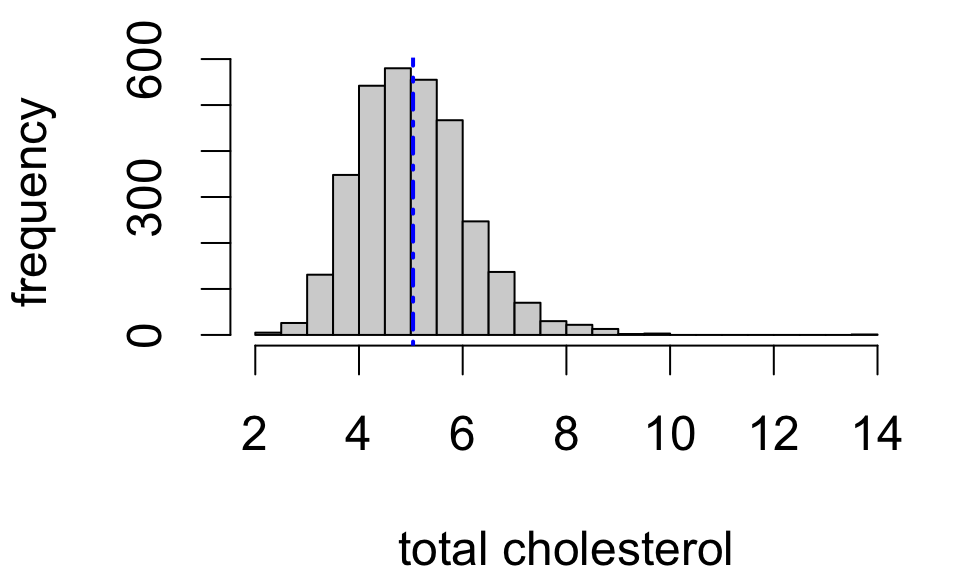

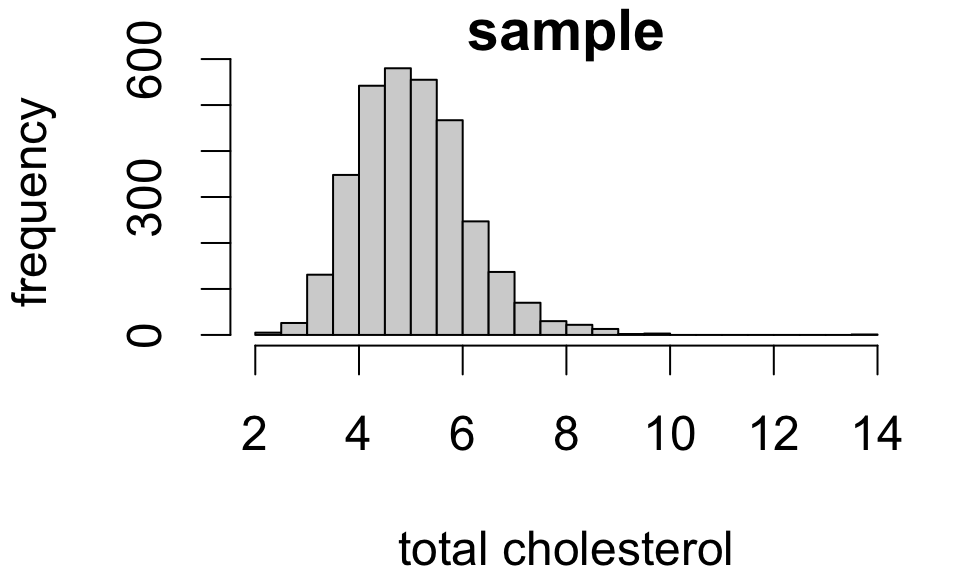

Sample statistics provide point estimates of the corresponding population statistics.

Notation:

sample mean
sample standard deviation

Sample mean	Sample SD	Sample size
5.043	1.075	3179

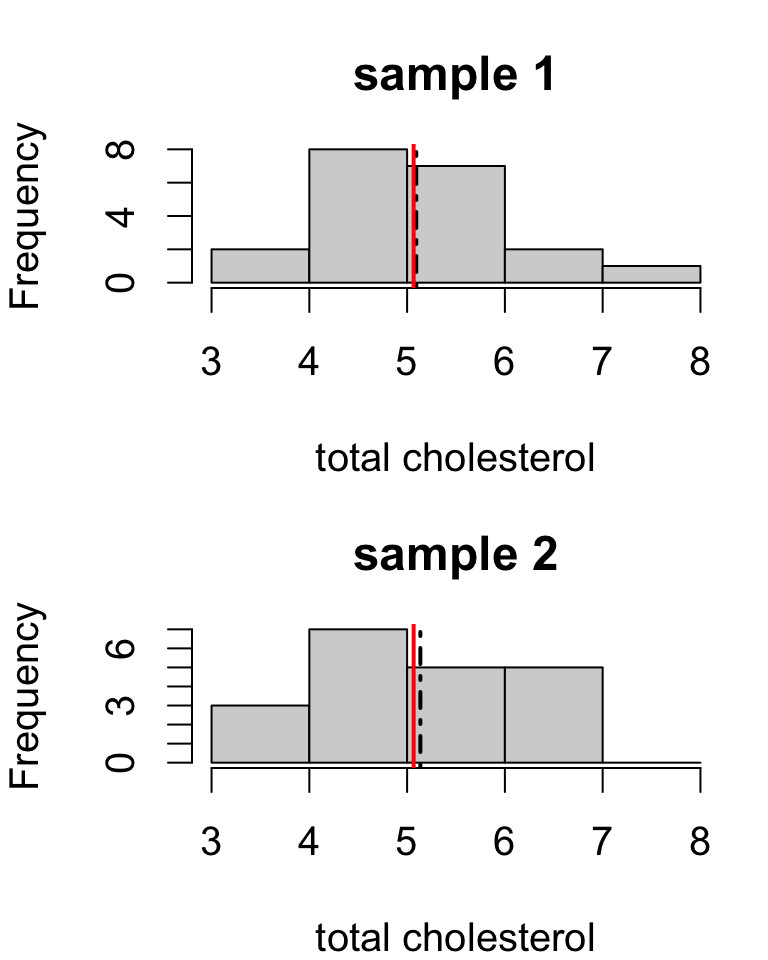

A difficulty

Different samples yield different estimates.

Sample means:

sample.1	sample.2
5.093	5.136

estimates are close but not identical
the population mean can’t be both 5.093 and 5.136
probably neither estimate is exactly correct
but both estimates should have similar errors if the study design is identical between the two samples

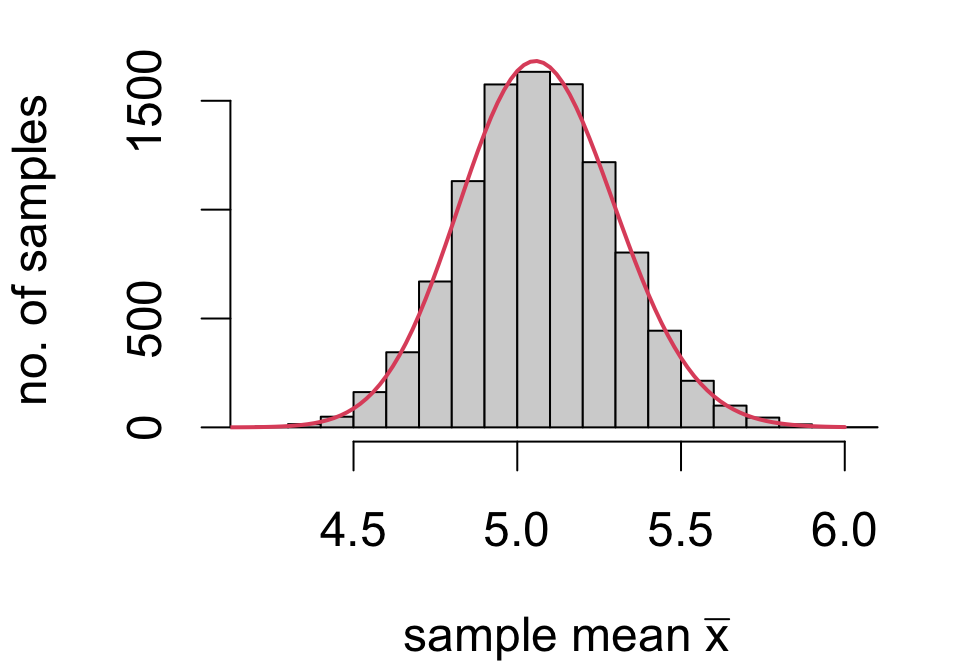

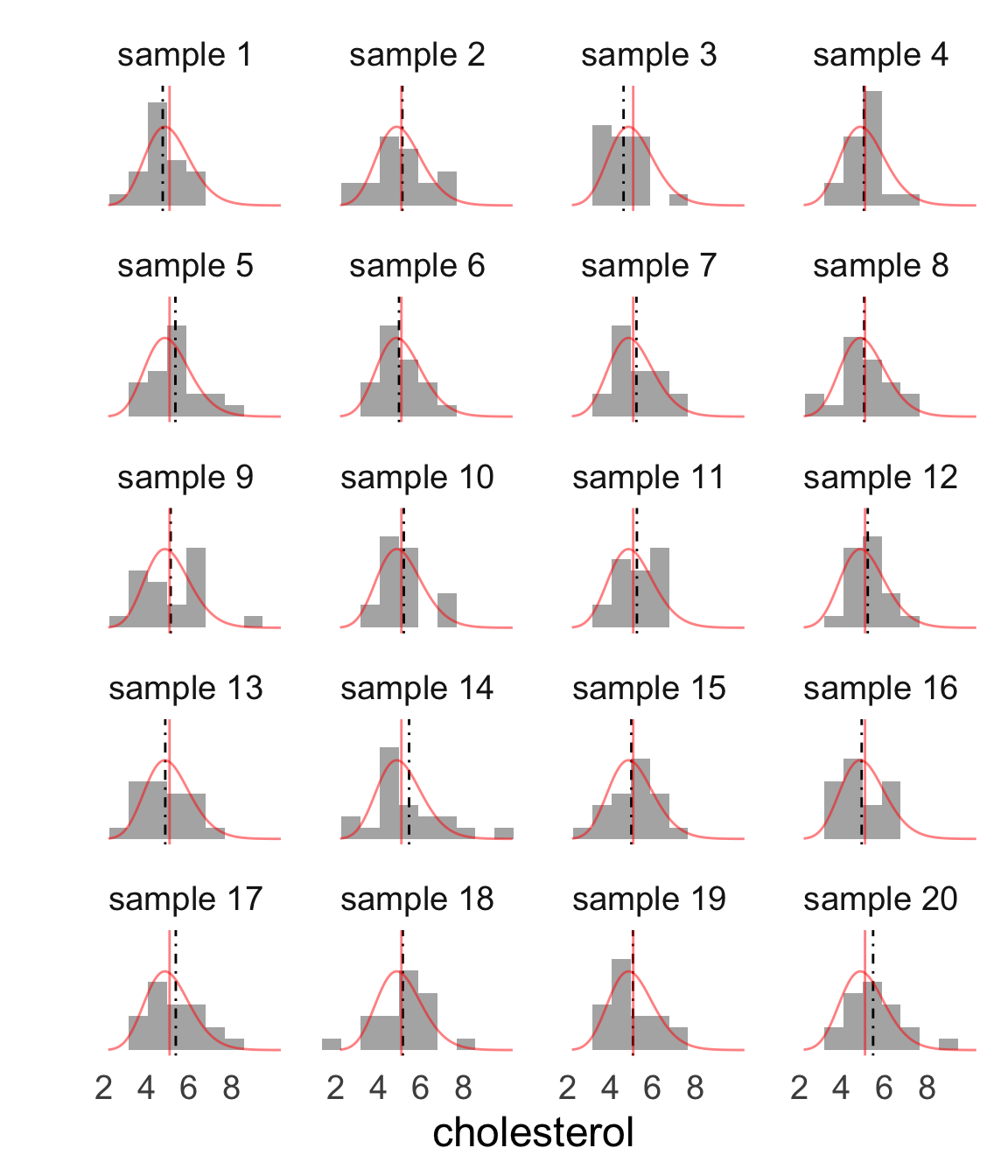

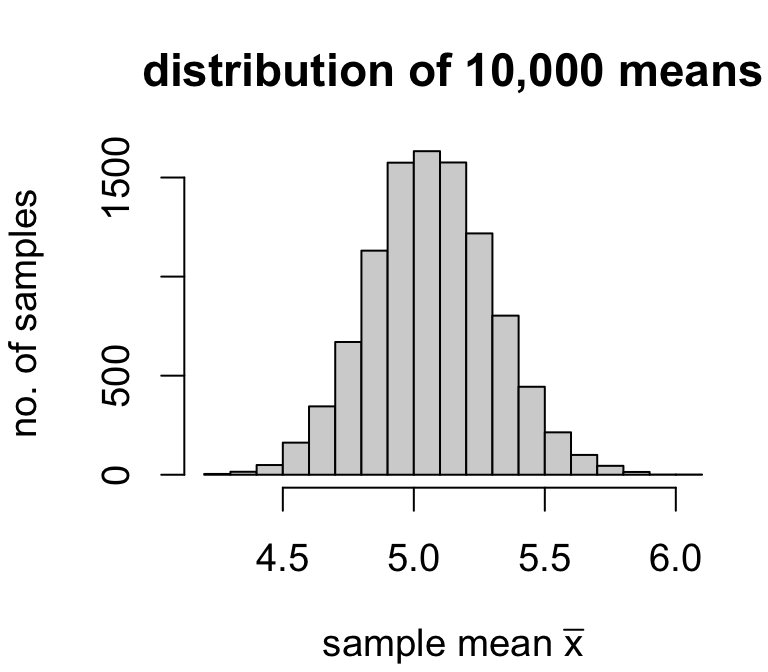

Simulating sampling variability

If we had means calculated from a much larger number of samples, we could make a frequency distribution for the values of the sample mean.

sample	1	2		10,000
mean	4.957	5.039		5.24

We could then use the usual measures of center and spread to characterize the distribution of sample means.

mean of : 5.068425
standard deviation of : 0.2369404

Across 10,000 random samples of size 20, the average estimate was 5.07 and the variability of estimates was 0.237.

Sampling distributions

What we are simulating is known as a sampling distribution: the frequency of values of a statistic across all possible random samples.

When data are from a random sample, statistical theory provides that the sample mean has a sampling distribution with

mean (population mean)
standard deviation

regardless of the population distribution.

In other words, across all random samples of a fixed size…

[accuracy] on average, the sample mean equals the population mean
[precision] on average, the estimation error is

Recap

Under simple random sampling:

the sample mean provides a good point estimate of the population mean
its estimated sampling variability is given by the standard error

mean	sd	n	se
5.043	1.075	3179	0.01906

Conventional style for reporting a point estimate:

The mean total HDL cholesterol among the U.S. adult population is estimated to be 5.043 mmol/L (SE 0.0191).

Inference foundations: interval estimation

Interval estimation

An interval estimate is a range of plausible values for a population parameter.

A common interval for the population mean is:

By hand:

In R:

avg.totchol <- mean(totchol)
se.totchol <- sd(totchol)/sqrt(length(totchol))
avg.totchol + c(-2, 2)*se.totchol

[1] 5.004817 5.081059

So the mean total cholesterol among U.S. adults is estimated to be between 5.005 and 5.081 mmol/L. Two questions:

In what sense are these values “plausible”?
Where did the number 2 come from?

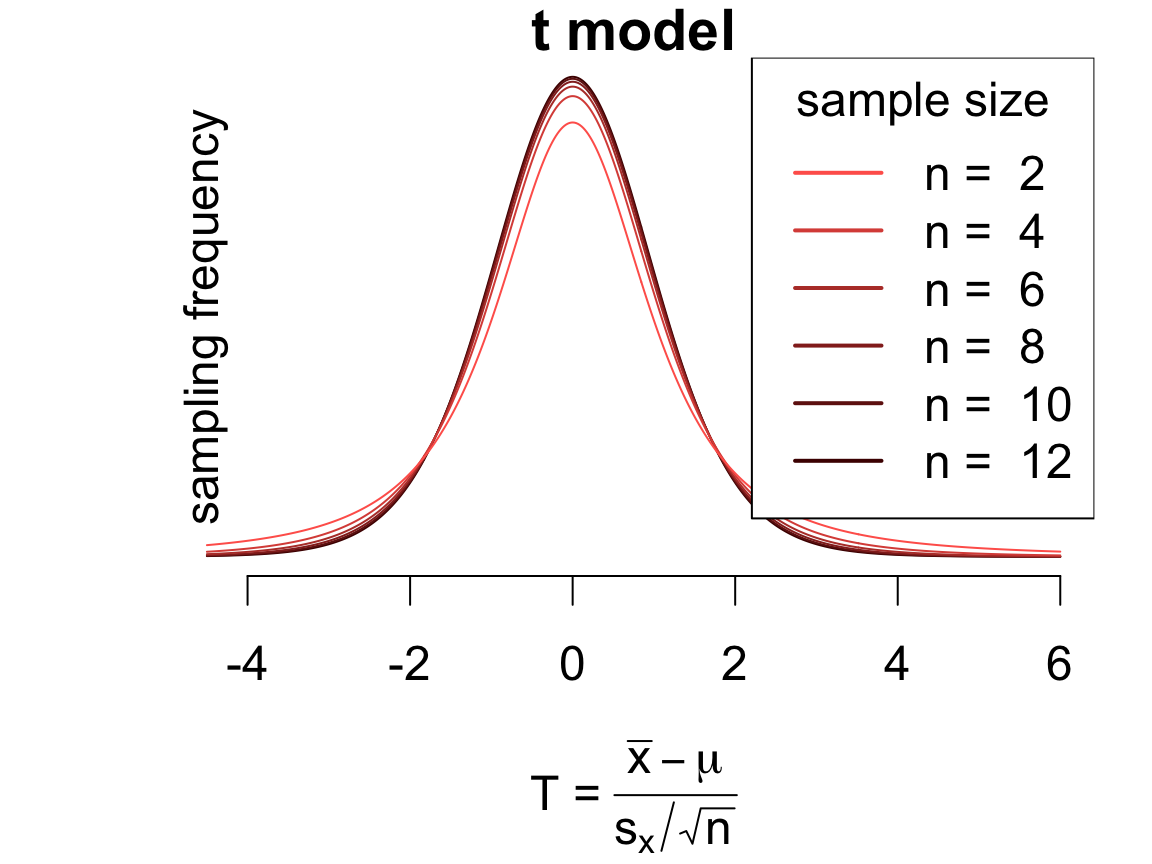

The model

Consider the statistic:

The sampling distribution of is well-approximated by a model whenever either:

the population distribution is symmetric and unimodal OR
the sample size is not too small

Compare this with the simulated sampling distribution of from before – should seem plausible, since is just shifted (by ) and scaled (by ).

model interpretation

The area under the density curve between any two values gives the proportion of random samples for which .

For example:

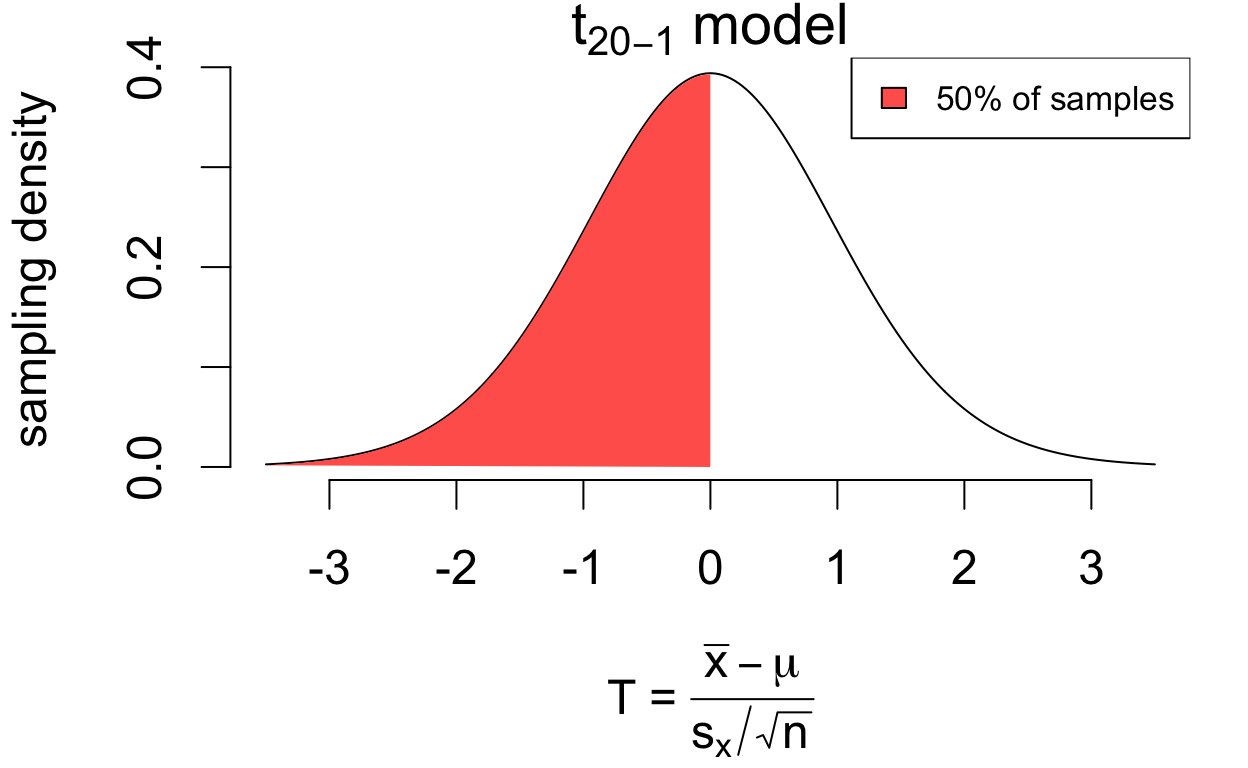

for 50% of samples,

# area less than 0
pt(0, df = 20 - 1)

[1] 0.5

written as

model interpretation

The area under the density curve between any two values gives the proportion of random samples for which .

For example:

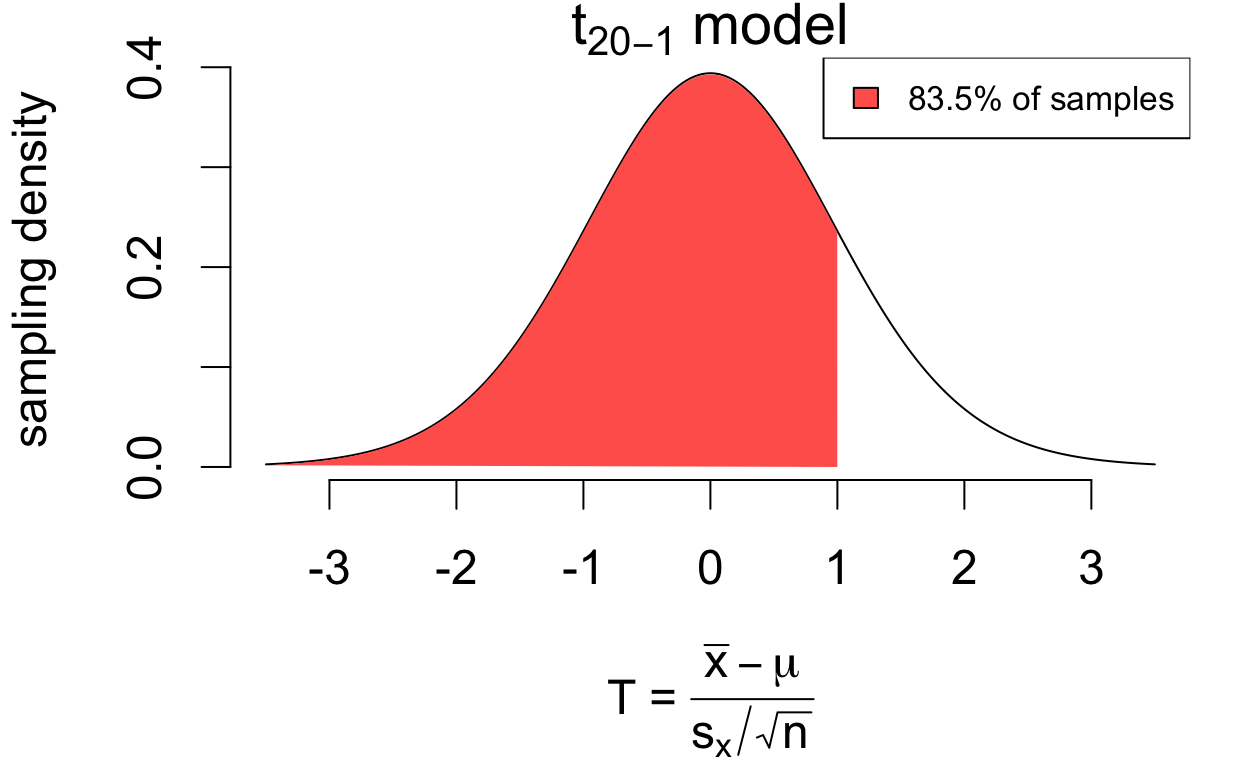

for 83.5% of samples,

# area less than 1
pt(1, df = 20 - 1)

[1] 0.8350616

written as

model interpretation

The area under the density curve between any two values gives the proportion of random samples for which .

For example:

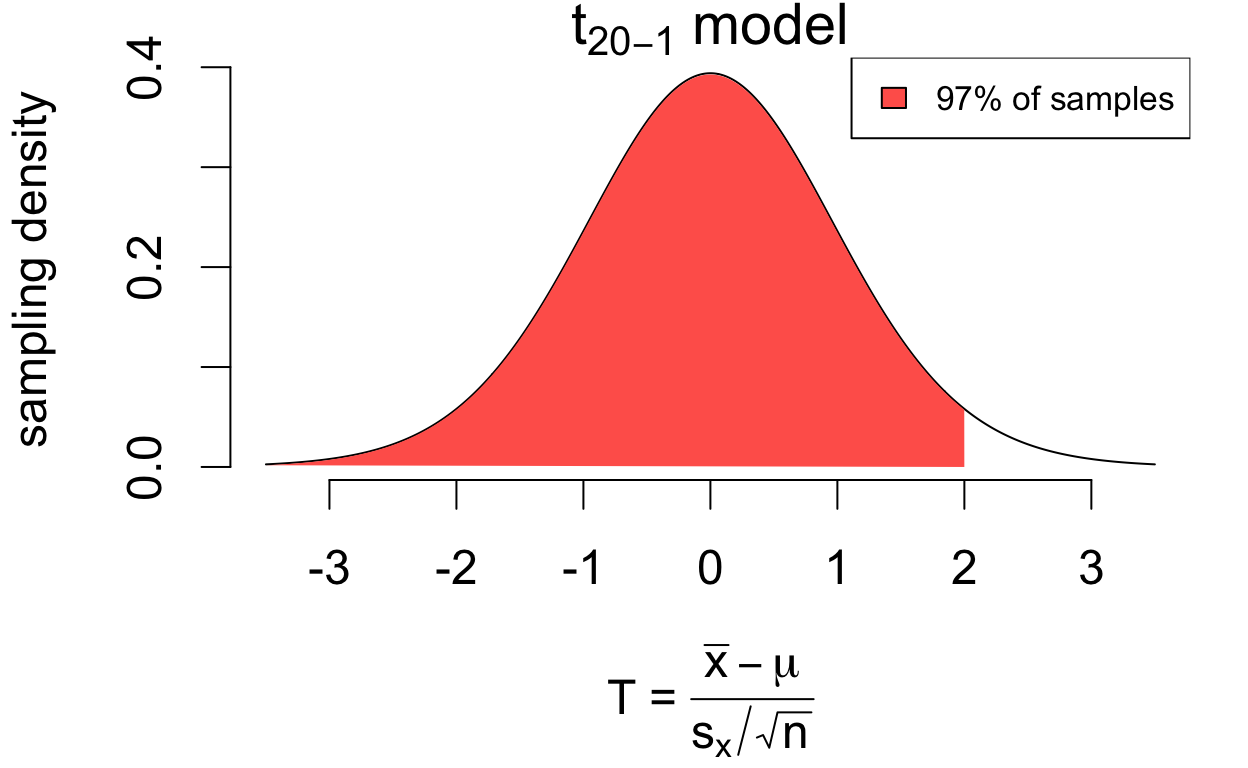

for 97% of samples,

# area less than 2
pt(2, df = 20 - 1)

[1] 0.969999

written as

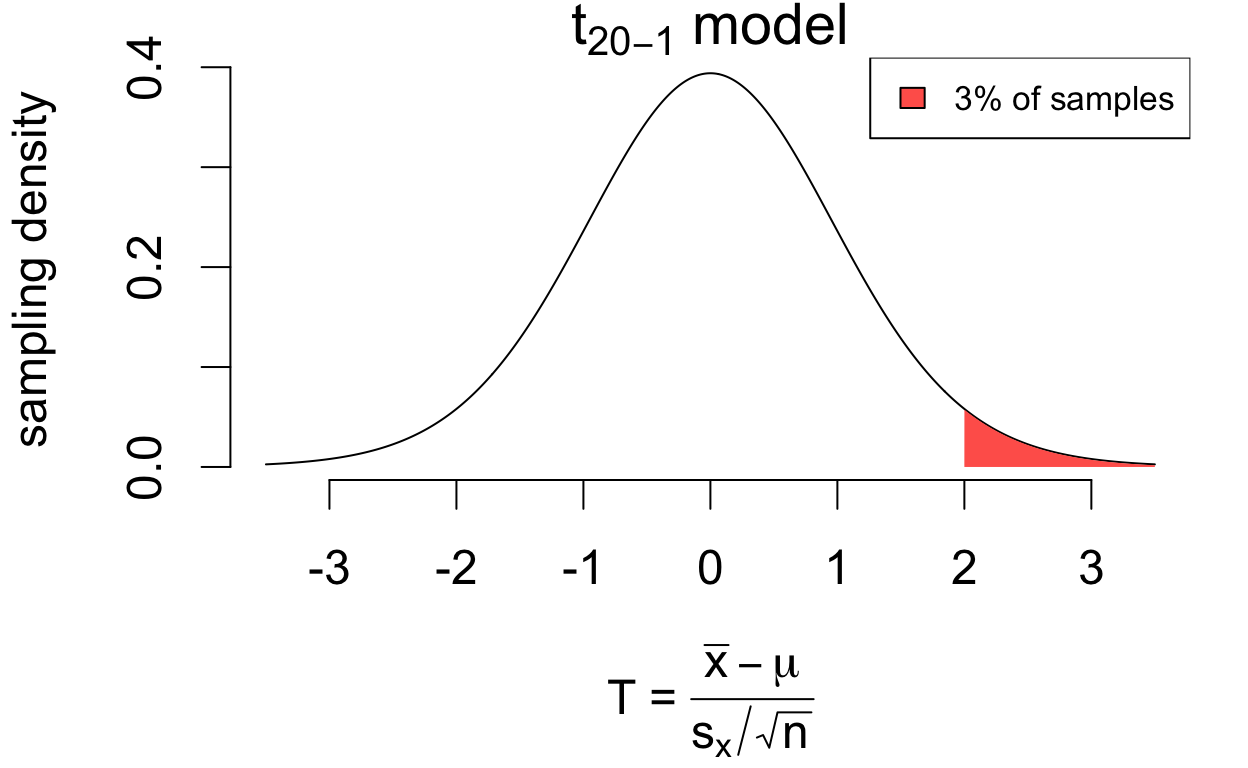

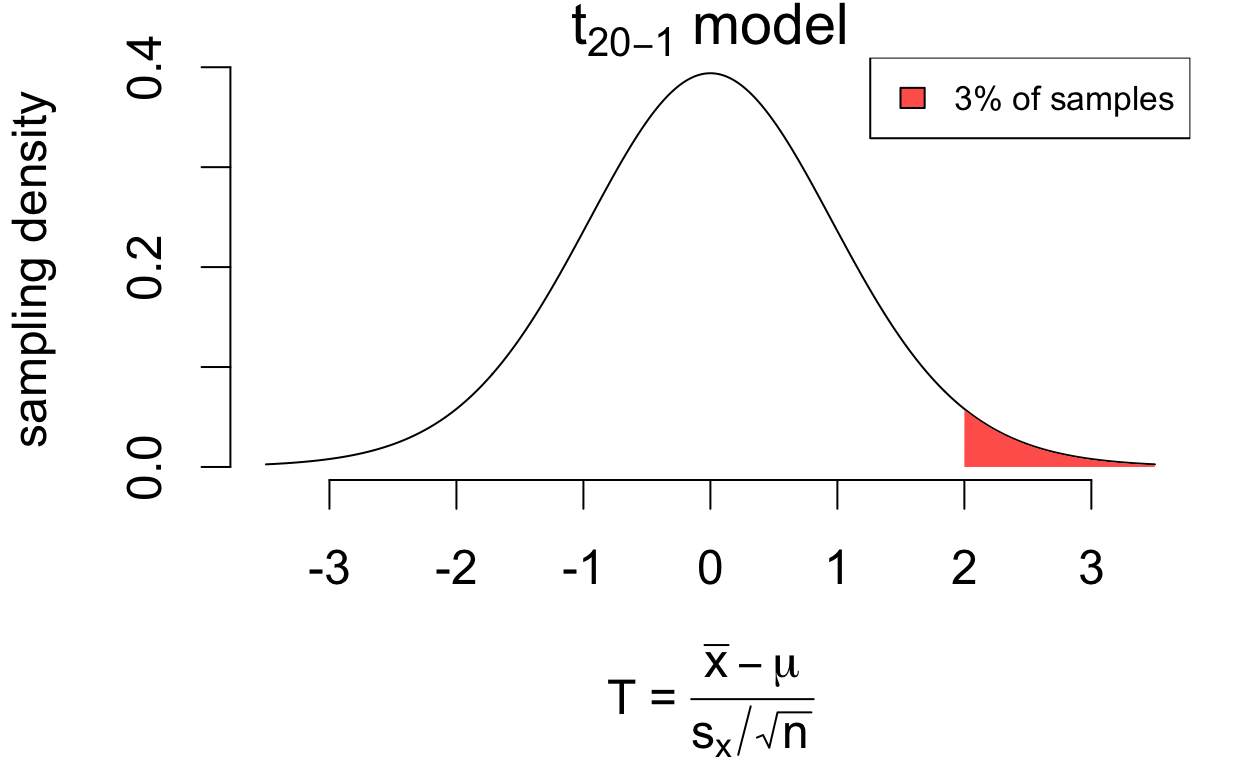

model interpretation

The area under the density curve between any two values gives the proportion of random samples for which .

For example:

for 3% of samples,

# area greater than 2
pt(2, df = 20 - 1, lower.tail = F)

[1] 0.03000102

notice:

model interpretation

The area under the density curve between any two values gives the proportion of random samples for which .

For example:

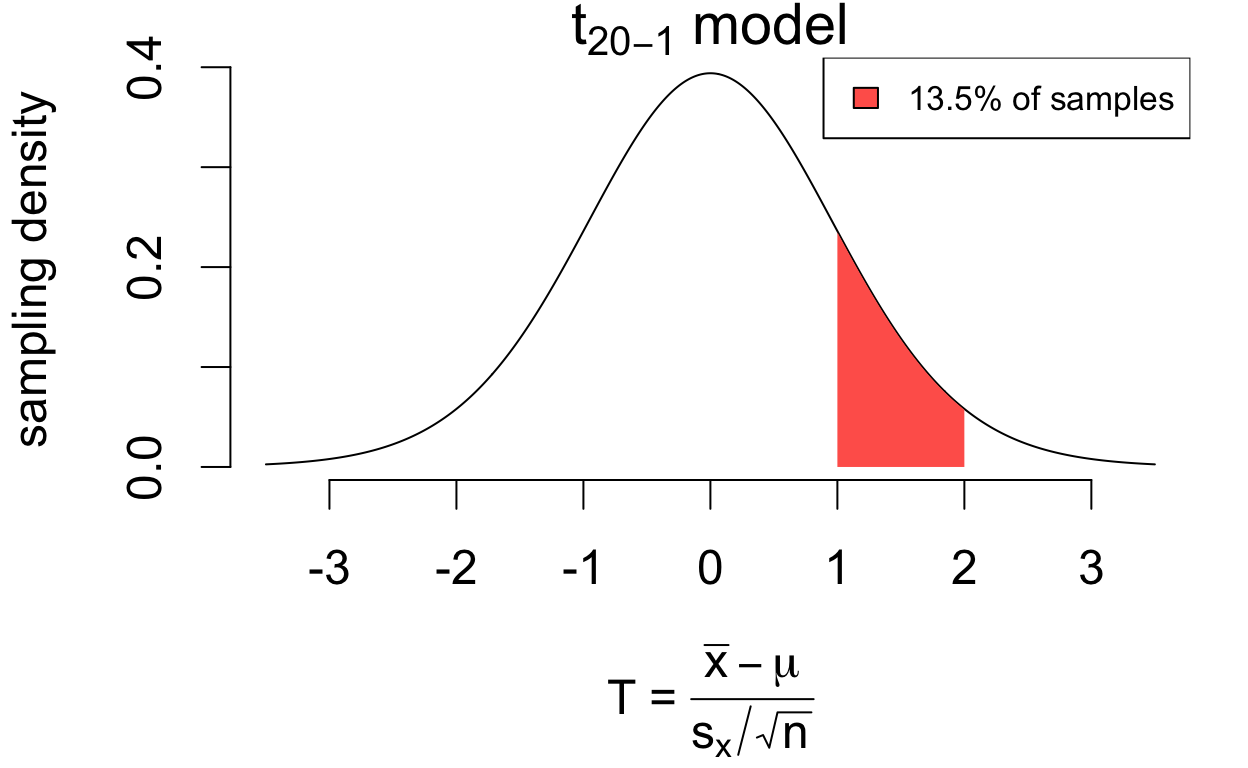

for 13.5% of samples,

# area between 1 and 2
pt(2, df = 20 - 1) - pt(1, df = 20 - 1)

[1] 0.1349374

notice:

model interpretation

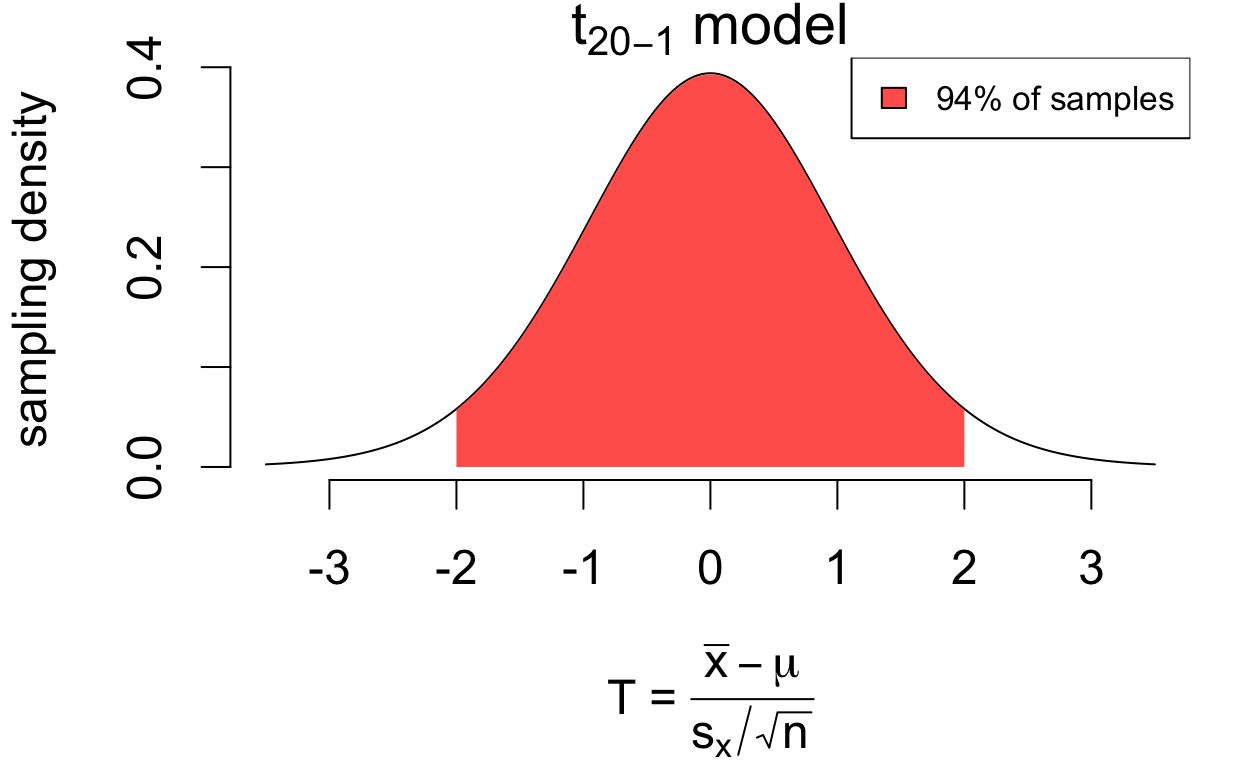

The area under the density curve between any two values gives the proportion of random samples for which .

For example:

for 94% of samples,

# area between 1 and 2
pt(2, df = 20 - 1) - pt(-2, df = 20 - 1)

[1] 0.939998

written

A closer look at interval construction

So where did that 2 come from in the margin of error for our interval estimate?

Well:

The 2SE interval covers the population mean for 94% of all random samples.

So the number 2 determines the proportion of samples for which the interval covers the mean, known as its coverage.

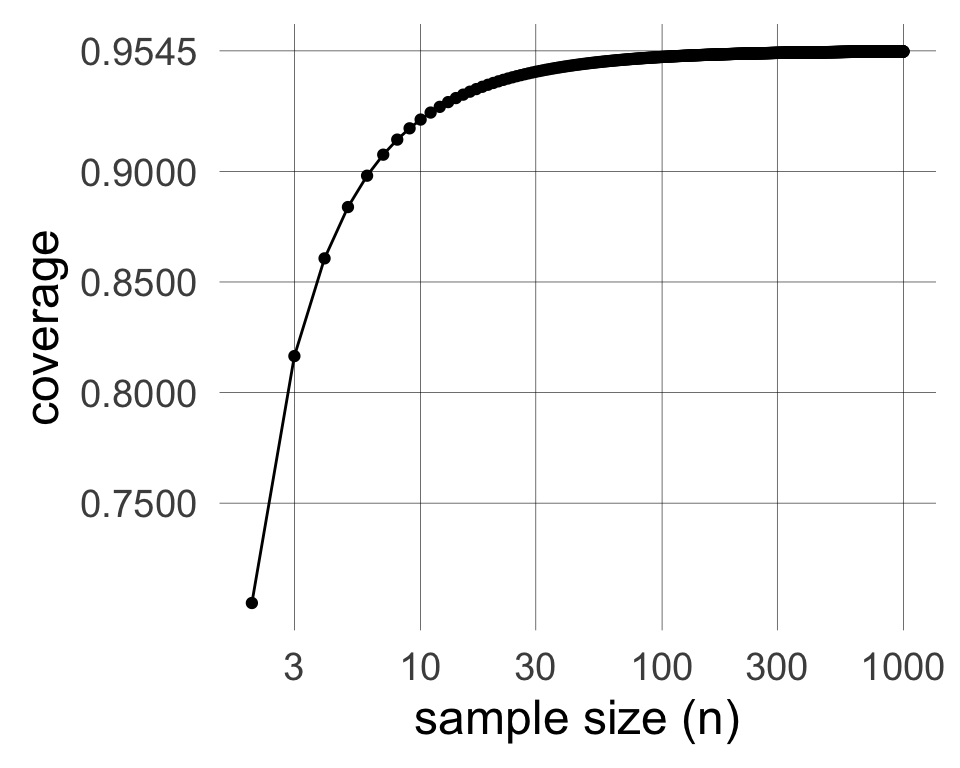

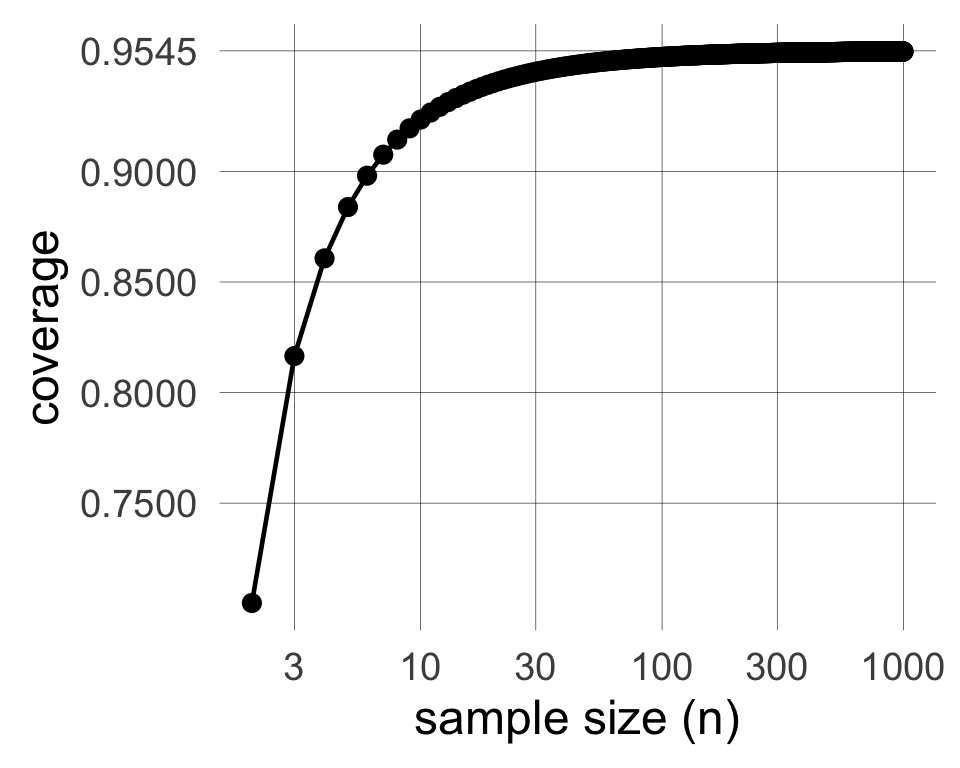

Coverage for the 2SE interval

The sample size determines the exact shape of the model through its ‘degrees of freedom’ . The coverage of an interval with quickly converges to just over 95% as the sample size increases.

n	coverage
4	0.8607
8	0.9144
16	0.9361
32	0.9457
64	0.9502
128	0.9524
256	0.9534

So we use 2 standard errors by default because that gives approximately 95% coverage.

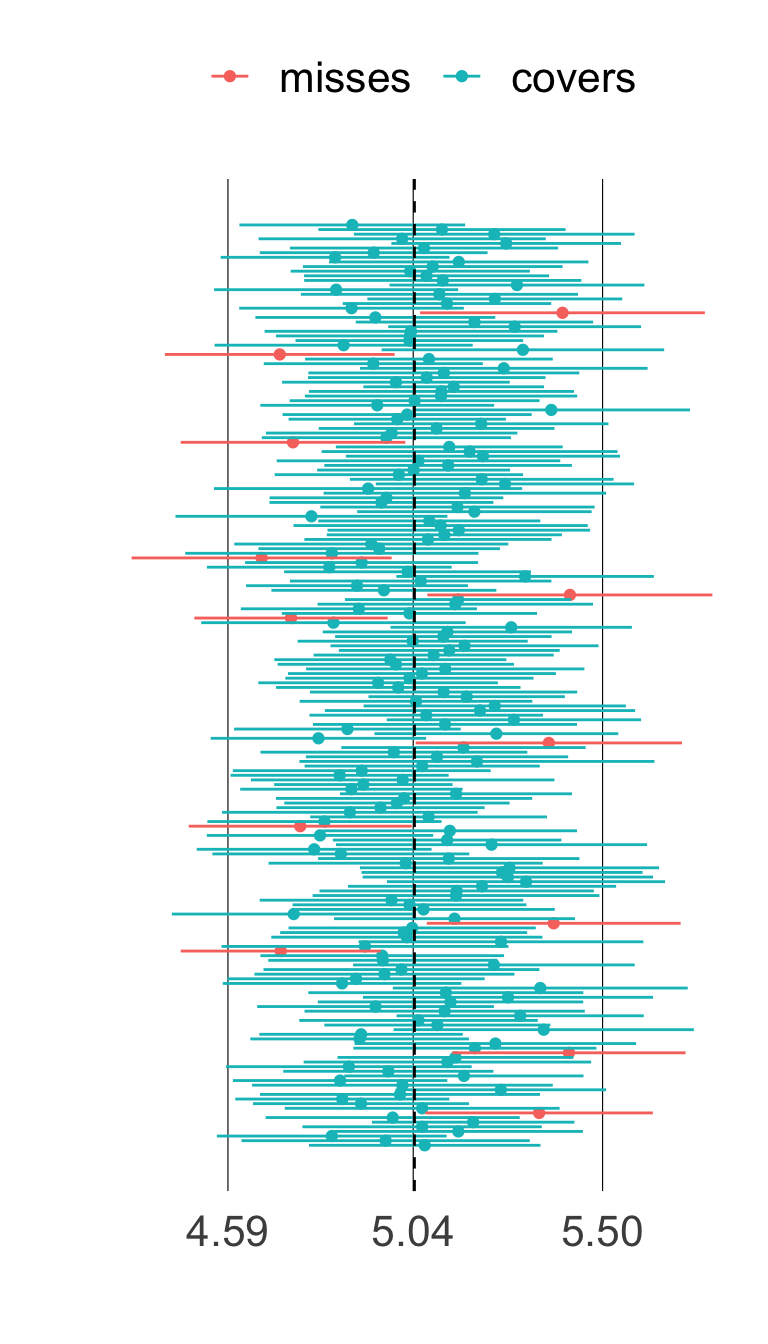

Coverage simulations

Artificially simulating a large number of intervals provides an empirical approximation of coverage.

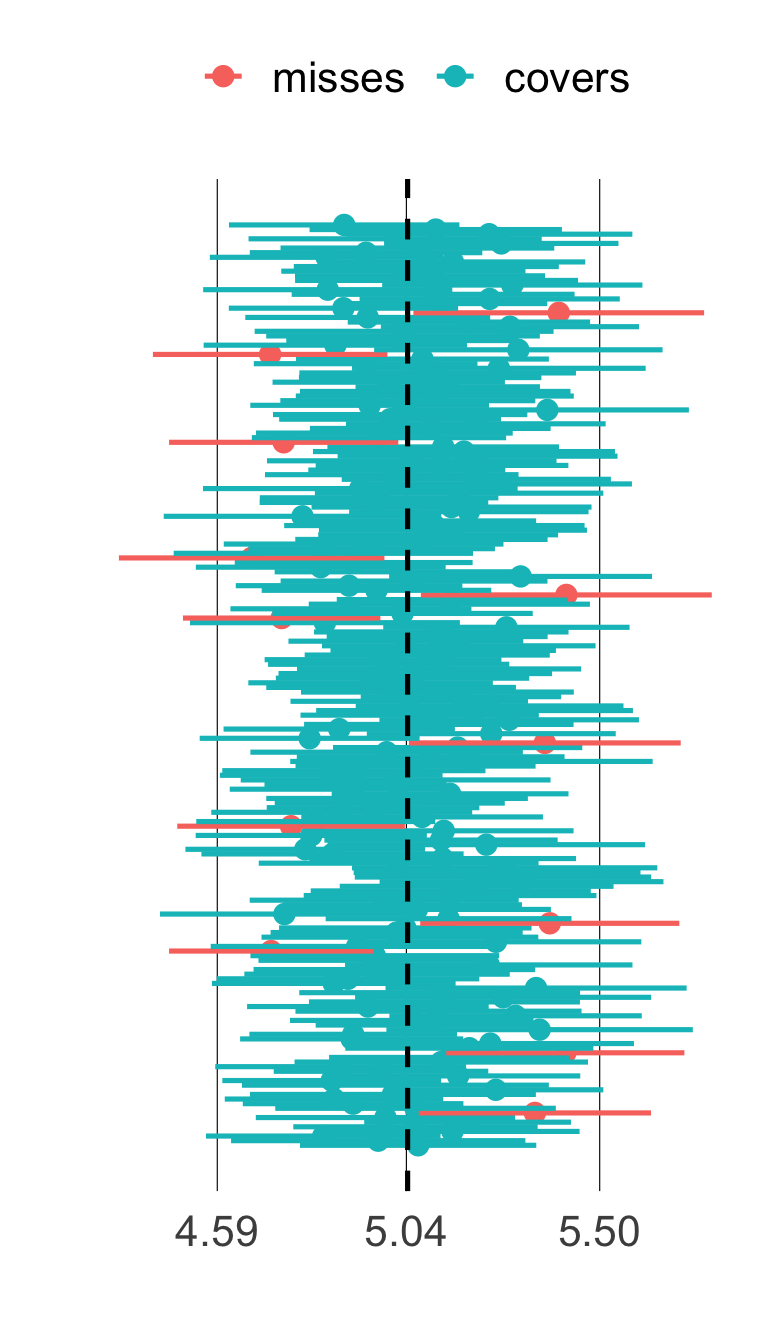

at right, 200 intervals
94% cover the population mean (vertical dashed line)
pretty close to nominal coverage level 95%

This is also a handy way to remember the proper interpretation:

If I made a lot of intervals from independent samples, 95% of them would ‘get it right’.

Adjusting coverage using quantiles

To engineer an interval with a specific coverage, use the th quantile of the model

In R:

# ingredients
cholesterol.mean <- mean(cholesterol)
cholesterol.se <- sd(cholesterol)/sqrt(length(cholesterol))

# 95% coverage using t quantile
crit.val <- qt(1 - (1 - 0.95)/2,
               df = length(cholesterol) - 1)
cholesterol.mean + c(-1, 1)*crit.val*cholesterol.se

[1] 5.005566 5.080310

The effect of the adjustment is:

larger quantile wider interval higher coverage
smaller quantile narrower interval lower coverage

Note, however, that interval width depends also on the “precision” of the estimate (via ) as well as the desired coverage level.

Confidence intervals

The coverage – how often the interval captures the parameter – is interpreted and reported as a “confidence level”; we thus call interval estimates “confidence intervals”.

# ingredients
cholesterol.mean <- mean(cholesterol)
cholesterol.se <- sd(cholesterol)/sqrt(length(cholesterol))

# 95% coverage using t quantile
crit.val <- qt(1 - (1 - 0.95)/2,
               df = length(cholesterol) - 1)
cholesterol.mean + c(-1, 1)*crit.val*cholesterol.se

[1] 5.005566 5.080310

Conventional style for reporting a confidence interval:

With 95% confidence, the mean total cholesterol among U.S. adults is estimated to be between 5.0056 and 5.0803 mmol/L.

Recap

The “common” interval estimate for the mean is an approximate 95% confidence interval:

captures the population mean for roughly 95% of random samples
replacing 2 with a quantile allows the analyst to adjust coverage
the model is an approximation for the sampling distribution of

Conventional style of report:

With [XX]% confidence, the [population parameter] is estimated to be between [lower bound] and [upper bound] [units].

1 / 70

Foundations for statistical inference Applied Statistics for Life Sciences

Foundations for statistical inference
Study design and data semantics
What is a study?
Sampling
Two types of studies
LEAP Study
Why randomize?
Data semantics
LEAP example
Numeric and categorical variables
Variable subtypes
Many ways to measure attributes
Your turn
Recap
Descriptive statistics
Dataset: FAMuSS study
Summary statistics
Mathematical notation
Descriptive statistics
Categorical frequency distributions
Numeric frequency distributions
Histograms and binning
Shapes
Modes
Your turn: characterizing distributions
Your turn: characterizing distributions
Common statistics as measures
Measures of center
Comparing measures of center
Robustness to skew
Percentiles
Cumulative frequency distribution
Common percentiles
Boxplots vs. histograms
Measures of spread
Range-based measures of spread
Deviation-based measures of spread
Deviation-based measures of spread
Interpretations
Robustness to outliers
Choosing appropriate measures
Inference foundations: point estimation and sampling variability
Population distributions
Foundations for inference
Foundations for inference
Foundations for inference
A difficulty
Simulating sampling variability
Simulating sampling variability
Sampling distributions
Measuring sampling variability
Sources of variability
Recap
Inference foundations: interval estimation
Interval estimation
The \(t\) model
\(t\) model interpretation
\(t\) model interpretation
\(t\) model interpretation
\(t\) model interpretation
\(t\) model interpretation
\(t\) model interpretation
A closer look at interval construction
Coverage for the \(\pm\) 2SE interval
Coverage simulations
Changing the coverage
Adjusting coverage using \(t\) quantiles
Adjusting coverage using \(t\) quantiles
Confidence intervals
Recap
